Thin Hot Rolled Stainless Steel Sheet 1000mm,1219mm,1250mm,1500mm

Place of Origin Shanghai ,Shanxi
Brand Name BAOSTEEL , TISCO ,HONGWANG ,LISCO,
Certification ISO ,SGS,BV
Model Number 300 Series 304
Minimum Order Quantity Negotiable
Price Negotiation
Packaging Details Export Package
Delivery Time 5-10 working days
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 2000 T/Month
Product Details
Thickness Customized Finish NO 1,2B ,BA
Width 1000mm,1219mm,1250mm,1500mm Feature Thin
Model No 304 Standard ASTM /JIS/GB
High Light

stainless steel sheet 2b finish

,

hairline finish stainless steel sheet

Leave a Message
Product Description

Thin Hot Rolled Stainless Steel Sheet 1000mm,1219mm,1250mm,1500mm

1. Hot Rolled Stainless Steel Sheet Details



ITEM Stainless Steel Sheet/Plates
Size Thickness 0.01mm-3.0mm or customized;Width:500-1500mm or customize
Material

201.202.301.302.304.304L.310S.316.316L.321.430.430A.309S.2205.2507.2520.430

.410.440.904Lect. Or Customized

Standard GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Surface 2B.NO.1.,NO.4,HL,BA,BK Or customized;
Application

Foodstuff, Gas, metallurgy, biology, electron, chemical, petroleum,

boiler, nuclear energy, Medical equipment, fertilizer etc

Package Standard export sea-worthy packing or customized
Lead Time 7-15 days after deposit
Payment TT/LC
Sample we could offer the sample for free charge but do not pay the cost of freight.

2. Chemical Properties:

C: ≤0.08 ,Si:≤1.0 ,Mn: ≤2.0 ,Cr:18.0~20.0 ,Ni: 8.0~10.0,S: ≤0.03 ,P: ≤0.045

Pysical properties:

Tensile strength σb (MPa

≥ 520


Specific heat capacity(0 ~ 100 ℃, KJ kgK)

0.50


Conditions yield strength

σ0.2 (MPa) ≥ 205


Thermal conductivity (W m. K)

(100 ℃), 16.3 21.5 (500 ℃)


Elongation δ5 (%)

≥40


The linear expansion coefficient k.

(0 ~ 100 ℃), 17.2 (0 ~ 500 ℃) of 18.4


Section shrinkage ψ (%)

≥ 60


Resistivity (20 ℃, 10 Ω m.)

0.73


Hardness

≤ 187HB; ≤ 90HRB; ≤ 200HV


The longitudinal elastic modulus (20 ℃, KN/mm) 193
Melting point (℃)

1398 ~ 1454


Specific heat capacity 0.50


3. Hot Rolled Stainless Steel Sheet Applications:

Food preparation equipment, especially in chloride environments
Chemical processing, equipment
Laboratory benches and equipment
Rubber, plastics, pulp & paper machinery
Pollution control equipment
Boat fittings, value and pump trim

4. Processing

Mostly Stainless steel sheet cut from stainless steel coil, but according to the  thickness.If thickness is very thick, it will be sheets  directly. Below are some steps of  sheets process.

1. GRINDING
Grinding finish, also called brushed, directional or satin finish. coil or sheet...
2. POLISHING
polished stainless steel sheet uses grinding fluid to polish by polishing equipment on stainless steel ..
3. PVD COLOR COATING
PVD means Physical Vapor Deposition,working in vacuum condiction.....
4. ETCHING
Etching is corrode different kinds of patterns on stainless steel surfaces by chemical methods.
5. EMBOSSING
It is physical rolling on the stainless steel surface, pattern comes from metal roller....

5.  Package

MOQ 1 Ton
Price Term FOB CIF CNF
Payment L/C at sight or 30% TT as deposit
Delivery Time 5-10 days after receiving deposit by T/T or L/C.
Sample Samples free and express charges bear by you

Standard export package with Kraft  paper with wooded trays or as required,containers sizes as follows

20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS

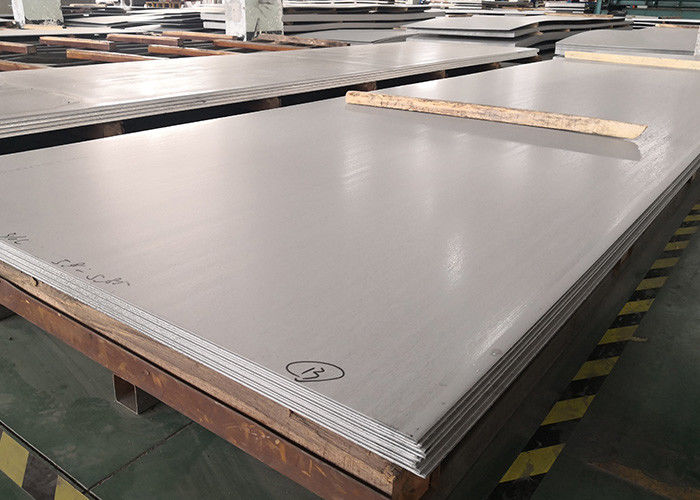

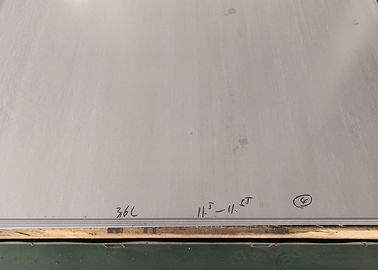

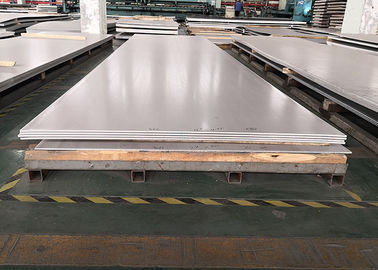

Hot Rolled Stainless Steel Sheet Details
