No.1 Surface Stainless Steel Sheet 304 , Hot Rolled Steel Plate 3mm Thickness

Place of Origin Shanghai ,Shanxi
Brand Name BAOSTEEL , TISCO ,HONGWANG ,LISCO,
Certification ISO ,SGS,BV
Model Number 300 Series 304
Minimum Order Quantity Negotiable
Price Negotiation
Packaging Details Export Package
Delivery Time 5-10 working days
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 2000 T/Month
Product Details
Name Stainless Steel Sheet 304 Finish No.1 Surface
Thickness 3mm Thickness Color Customized
Shape Plate Logo As Customized
High Light

mirror finish stainless steel sheet

,

hairline finish stainless steel sheet

Leave a Message
Product Description

No.1 Surface Stainless Steel Sheet 304 , Hot Rolled Steel Plate 3mm Thickness

1. Stainless Steel Sheet 304 Surface Treatment and characteristic



Surface finish Characteristics and application
NO.2B

The surface brightness and flatness of no2B is better than no2D. then through a special

surface treatment to improve its mechanical properties,No2B could nearly satisfy compreh

ensive uses.

NO.1

The surface is finished by heat treatment and pickling or processes corresponding thereto

after hot rolling.

NO.4

Polished with abrasive belt of grit #150-#180,have better brightness with discontinuous

coarse stria,but thinner than No3, are used as bathtub buildings inner and external

ornaments electrical appliances kitchen utensils and food processing equipment etc.

HL

Polished with abrasive belt of grit #150#320 on the NO.4 finish and has continuous

streaks,mainly used as buildingsornaments elevators,door of building,frontal plate etc.

BA

Cold rolled, bright annealed and skin-passed, the product have excellent brightness

and good reflexivity like mirror,kitchen apparatus,ornament etc.

8K The product have excellent brightness and prefer reflexivity can to be the mirror.

2. Chemical Properties:

C: ≤0.08 ,Si : ≤1.0 ,Mn: ≤2.0 ,Cr: 18.0~20.0 ,
Ni: 8.0~10.0,S: ≤0.03 ,P: ≤0.045

Stainless Steel Sheet 304 Pysical properties:

Tensile strength σb (MPa

≥ 520


Specific heat capacity(0 ~ 100 ℃, KJ kgK)

0.50


Conditions yield strength

σ0.2 (MPa) ≥ 205


Thermal conductivity (W m. K)

(100 ℃), 16.3 21.5 (500 ℃)


Elongation δ5 (%)

≥40


The linear expansion coefficient k.

(0 ~ 100 ℃), 17.2 (0 ~ 500 ℃) of 18.4


Section shrinkage ψ (%)

≥ 60


Resistivity (20 ℃, 10 Ω m.)

0.73


Hardness

≤ 187HB; ≤ 90HRB; ≤ 200HV


The longitudinal elastic modulus (20 ℃, KN/mm) 193
Melting point (℃)

1398 ~ 1454


Specific heat capacity 0.50


3. Resistance

Stainless steel’s resistance to corrosion and staining, low maintenance and familiar lustre make it an ideal material for many applications.The alloy is used in cookware, cutlery, household hardware, surgical instruments, major appliances, industrial equipment and as an automotive and construction material in large buildings etc. It also can be use in commercial kitchens and food processing plants, as it can be steam-cleaned and sterilized and does not need paint or other surface finishes.

4. Stainless Steel Sheet 304 Applications:

Food preparation equipment, especially in chloride environments
Chemical processing, equipment
Laboratory benches and equipment
Rubber, plastics, pulp & paper machinery
Pollution control equipment
Boat fittings, value and pump trim

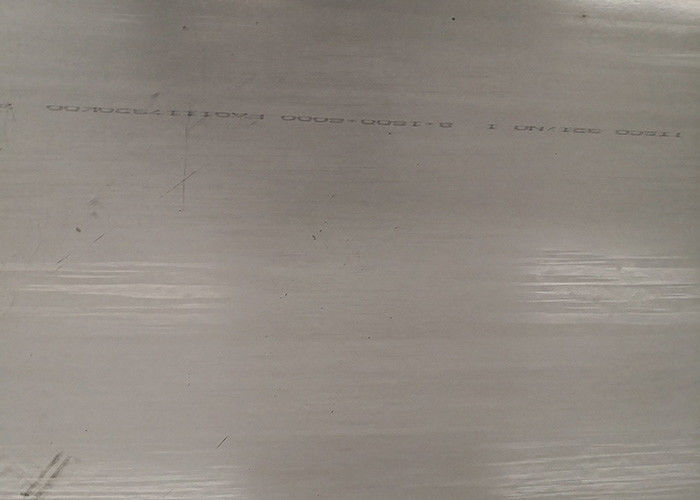

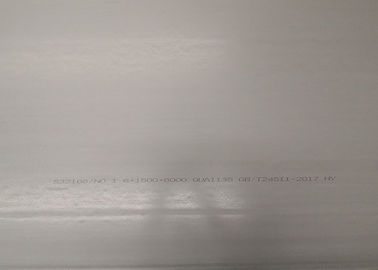

Stainless Steel Sheet 304 Pictures


No.1 Surface Stainless Steel Sheet 304 , Hot Rolled Steel Plate 3mm Thickness 0

No.1 Surface Stainless Steel Sheet 304 , Hot Rolled Steel Plate 3mm Thickness 1
