2D Finish 1.4509 / 439 Stainless Steel Strip Roll For Exhaust Pipe

Place of Origin Shanghai
Brand Name TISCO ,BAOSTEEL
Certification ISO,BV
Model Number 439 1.4509
Minimum Order Quantity 2 ton
Price Negotiation
Packaging Details Standard Seaworthy package or as the customer's requirement.
Delivery Time 5-10 working days
Payment Terms L/C, T/T, Western Union, D/A
Supply Ability 2000 Ton/Month
Product Details
Technology Cold And Hot Rolled Type Sheet,Rod,Pipe,Coil
Item Stainless Steel Color Natural
Shipping Air,Sea Thickness 0.3-3.0mm
High Light

439 Stainless Steel Strip Roll

,

1.4509 Stainless Steel Strip Roll

,

2D Stainless Steel Strip Roll

Leave a Message
Product Description

2D Finish 1.4509 / 439 Stainless Steel Strip Roll For Exhaust Pipe



chemical composition



Country Standard Grade (%)Chemical Composition














 ≤






C Si Mn P S Cr Ni  N  Ti
USA ASTM 439 0.03 1.00 1.00 0.04 0.03

17.0-

19.0

0.5

0.04

0.2+4(C+N)-1.10
Ger DIN 1.4510 0.05 1.00 0.00 0.04 0.015 16.0-18.0 - - 4(C+N)-0.80





Mechanical Property



Standard Mechanical Property








Tensile Strength

Yield Strength Elongation(%) Hardness

N/m㎡ (≤)N/m㎡ (≥)% (≤)HV

ASTM ≥415 205 22 180



Main purpose



Decoration board for elevator and escalator

Building decoration board, such as decorative structural parts, structural pipe

Automobile exhaust system components

Washing machine inner drum



439 stainless steel



The 439 steel grade is based on the ordinary ferrite material (430) to reduce the content of C, and the addition of stabilizing elements such as Ti, so that the steel species have improved intergranular corrosion resistance, formability and weldability. Compared with the 304 steel grade, the elongation is low (about 30%), but the strength and corrosion resistance are equivalent, and the corrosion resistance is better than the 200 series materials.

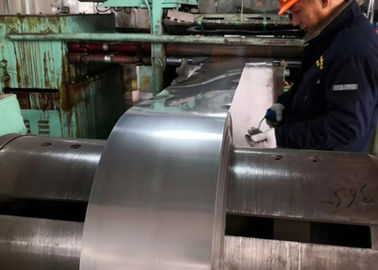

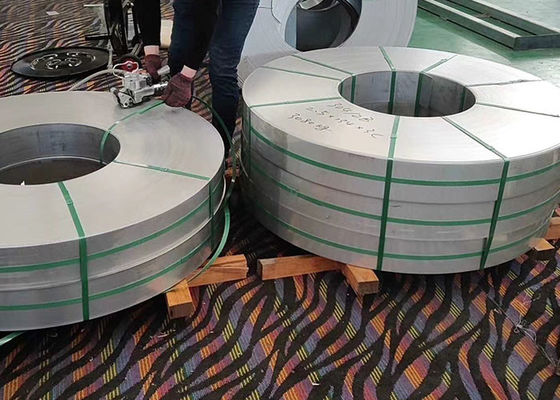

2D Finish 1.4509 / 439 Stainless Steel Strip Roll For Exhaust Pipe 02D Finish 1.4509 / 439 Stainless Steel Strip Roll For Exhaust Pipe 1

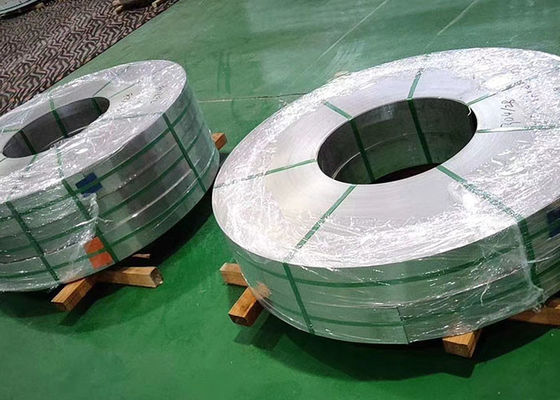

2D Finish 1.4509 / 439 Stainless Steel Strip Roll For Exhaust Pipe 2
