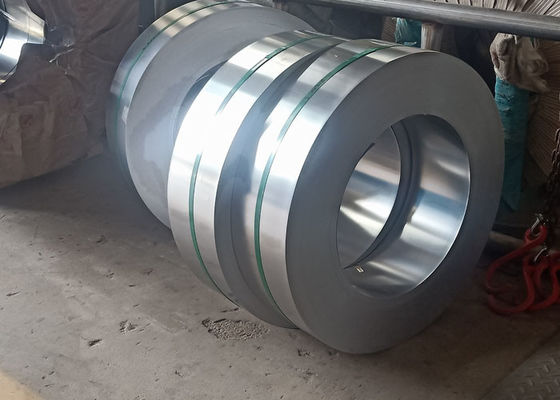

1.4509 409L Stainless Steel Strip Coil For Exhaust Pipe

Place of Origin Shanghai
Brand Name TISCO ,BAOSTEEL
Certification ISO,BV
Model Number 439 1.4509
Minimum Order Quantity 2 ton
Price Negotiation
Packaging Details Standard Seaworthy package or as the customer's requirement.
Delivery Time 5-10 working days
Payment Terms L/C, T/T, Western Union, D/A
Supply Ability 2000 Ton/Month
Product Details
Technology Cold And Hot Rolled Type Sheet,Rod,Pipe,Coil
Item Stainless Steel Color Natural
Shipping Air,Sea Thickness 0.3-3.0mm
High Light

409L Stainless Steel Strip Coil

,

1.4509 Stainless Steel Strip Coil

,

1.4509 stainless steel coil stock

Leave a Message
Product Description

1.4509 / 439 409L Stainless Steel Strip Roll For Exhaust Pipe Production​





Welcome know more about our company.

1.10+rich experiece in stainless steelsheet,coil and all kinds of bars;
2.The company was awarded the gold product  vertified by ISO certification;
3.Competive prices with cusomer oriednted;
4.Exported to more than 30 countries;
5.Fast delivery in 7-15 days

Any questions,  pls feel free to let me know and I will reply you in 2 hours; Looking forward to your reply!



chemical composition



Country Standard Grade (%)Chemical Composition














 ≤






C Si Mn P S Cr Ni  N  Ti
USA ASTM 439 0.03 1.00 1.00 0.04 0.03

17.0-

19.0

0.5

0.04

0.2+4(C+N)-1.10
Ger DIN 1.4510 0.05 1.00 0.00 0.04 0.015 16.0-18.0 - - 4(C+N)-0.80





Mechanical Property



Standard Mechanical Property








Tensile Strength

Yield Strength Elongation(%) Hardness

N/m㎡ (≤)N/m㎡ (≥)% (≤)HV

ASTM ≥415 205 22 180



Main purpose



Decoration board for elevator and escalator

Building decoration board, such as decorative structural parts, structural pipe

Automobile exhaust system components

Washing machine inner drum



439 stainless steel



The 439 steel grade is based on the ordinary ferrite material (430) to reduce the content of C, and the addition of stabilizing elements such as Ti, so that the steel species have improved intergranular corrosion resistance, formability and weldability. Compared with the 304 steel grade, the elongation is low (about 30%), but the strength and corrosion resistance are equivalent, and the corrosion resistance is better than the 200 series materials.
