EN 1.4509 AISI 441 Ferritic Cold Rolled Stainless Steel Sheet
Product Details
| Grade | 441 | Application | Exhaust System |
|---|---|---|---|
| Place Of Origin | China | Width | 1219,1000MM |
| MOQ | 1 TON | Product Name | Factory Provide 441 Stainless Steel Sheet Coil AISI Cold Rolled |
| High Light | Ferritic Cold Rolled Stainless Steel Sheet,AISI 441 Stainless Steel Sheet,EN 1.4509 ss sheet metal |
||
Product Description

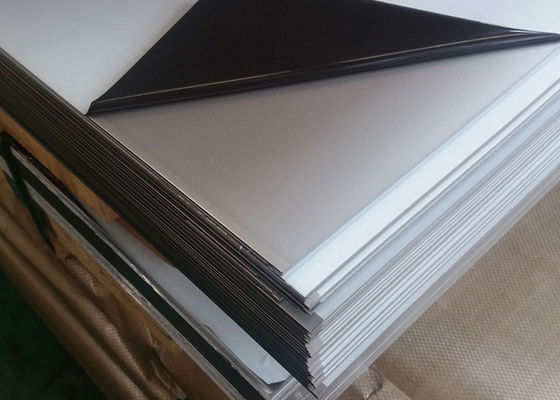

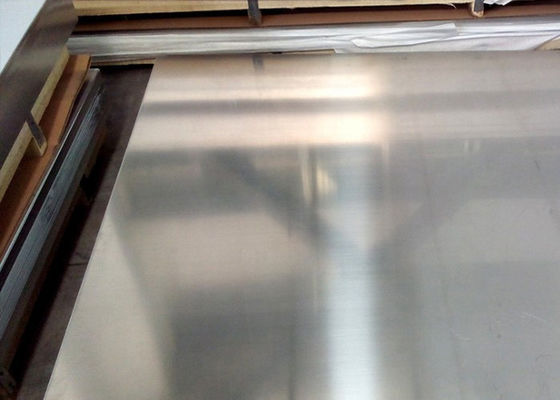

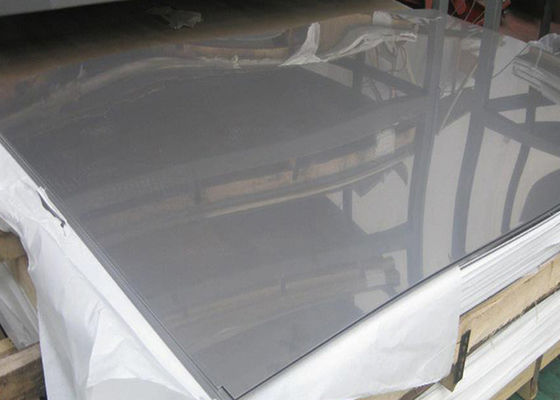

EN 1.4509 AISI 441 Cold Rolled Ferritic Stainless Steel Sheet And Coil
Ferritic SS 441
SS 441 stainless steel is double balanced out ferritic hardened steel with a chromium content of up to 18% and low carbon. 441 stainless steel has better high temperature strength as compared to grade 409L in addition to 439 great resistance in various exhaust gas conditions and better oxidation resistance at elevated temperatures.
Corrosion Resistance
SS 441 or UNS S44100 is ferritic stainless steel with niobium providing the steel good oxidation and corrosion resistance. SS 441 is resistant to corrosion in solutions of various halogen-free organic and inorganic compounds when tested in a wide temperature and concentration range.
With its titanium and niobium content, the risk of sensitization for intergranular corrosion is reduced enough when compared to grades with non-stabilized ferritic stainless steels. It can surpass many sufficiently diluted organic and mineral acids considering the temperature and concentration of the solution.
1.Product Description
|
Product Name
|
stainless steel sheet aisi 441
|
|
Length
|
as required
|
|
Width
|
3mm-2000mm or as required
|
|
Thickness
|
0.1mm-5mm or as required
|
|
Standard
|
JIS,GB,JIS,SUS,EN,.AISI,ASTM,DIN
|
|
Technique
|
Hot rolled / cold rolled
|
|
Surface Treatment
|
2B or according to customer requirement
|
|
Thickness tolerance
|
±0.01mm
|
|
Shipment time
|
Within 15-20 workdays after receiving deposit or L/C
|
|
Export packing
|
Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
|
Capacity
|
250,000 tons/year
|
2.The chemical composition of grade 441 stainless steel is outlined in the following table.
| EN | DIN | AISI | UNS | JIS |
| 1.4509 | X2CrTiNb18 | 441 | S43932 | 441 |
Chemical composition ( weight % )
| Grade | C | Si | Mn | P | S | Cr | Ni | Nb | N | Ti |
| 441 | 0.03 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 17.5~19.5 | 1.00 max | 0.3+9XCmin, 0.9 max | 0.03 max | 0.1~0.5 |
3. The mechanical properties of grade 441 stainless steel are displayed in the following table.
| Properties | Metric | Imperial |
| Tensile strength (annealed) | 489 MPa | 70900 psi |
| Yield strength (@temperature 871 °C/ 1600 °F ) | 2.90 MPa | 421 psi |
| Modulus of elasticity | 220 GPa | 31908 ksi |
| Elongation at break (in 2", annealed) | 35.90% | 35.90% |
| Hardness, Rockwell B (annealed) | 80 | 80 |
4.Applications
Type 441 stainless developed for mufflers and exhaust emission control systems.
Due to its alloy composition, this steel exhibits scaling resistance up to over 950 °C in continuous
service and good corrosion resistance under exhaust system loads.
5. Product forms
Hot and Cold-rolled wide coil, strip, sheet and plate, slit strip, cut sheets
6.Packing
1.packing the carbon coil with polyethylene
2.fixed with steel ring
3.use mental band strapping to protect the steel coil
Is 441 stainless steel magnetic?
The 441 flat rolled stainless steel possesses magnetic quality in all conditions. Type 441 is an 18% chromium, dual stabilized ferritic stainless steel with corrosion resistance similar to that of 304/304L stainless steel.
Which is better SS 304 and SS 441?
When we compare SS304 Vs SS 441, SS441 comes with slightly higher proof strength than regular austenitic SS 304 in combination with lower work hardening. SS 441 can be used in the temperature range where chromium carbides would precipitate in non-stabilized ferritic grades.
