Austenitic Ultrathin 316L Stainless Steel Strip Coil Chemical Resistant

  • Austenitic Ultrathin 316L Stainless Steel Strip Coil Chemical Resistant
  • Austenitic Ultrathin 316L Stainless Steel Strip Coil Chemical Resistant
  • Austenitic Ultrathin 316L Stainless Steel Strip Coil Chemical Resistant
Place of Origin Shanghai ,Shanxi
Brand Name BAOSTEEL , TISCO ,HONGWANG ,LISCO，
Certification ISO ,SGS,BV
Model Number 300 Series 301 304 316
Minimum Order Quantity 1 ton according to products
Price Negotiation
Packaging Details Export Package
Delivery Time 5-10 working days
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 2000 T/Month
Product Details
Name Stainless Steel Strip Ultra Thin Precision 301 304 316 Thickness 3mm
Finish NO 1,2B Width 6-600MM
Standard JIS/ASTM/BN Shape Coil
High Light

Ultrathin 316l coil

,

Ultrathin Stainless Steel Strip Coil

,

austenitic 316l coil
Leave a Message
Product Description

301 304L  316 Ultra Thin Precision Stainless Steel Strip / Stainless Steel Foil Rolls



1. Products Details



304/304L stainless sheet/coil and plate is part of the austenitic family of stainless steel. 304 grades contain a lower level of carbon than 302 and 304L has a lower carbon level than straight grade 304. Types 304 and 304L have very good drawability and excellent corrosion resistance in chemical, textile, petroleum and food industry exposure.




Grade Temper HV
304 ANN 200 max
1/2H 250 min.
3/4H 310 min.
FH 370 min.
301 ANN 218 max.
1/2H 310 min.
3/4H 370 min.
FH 430 min.
EH 490 min.





Grade Cold / Hot Rolled 3mm 304L Stainless Steel Strip Coil
Thinckness 0.02-0.05 mm
Standard JIS, AISI, ASTM, GB, DIN, EN ,etc.
Finish 2B, NO1,Hairline, No.4, BA, 8K mirror, etc.
Certification SGS
Packaging Standard exporting packing; seaworthy package.
MOQ 1 Tons
Price time FOB, CFR, CIF, CNF
Remarks Insurance is all risks and accept the third party test

2. Chemical Properties:  304L

304l C Si Mn P S Ni Cr
≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 8.00~12.00 18.00~20.00


  Pysical properties



304l Tensile Strength: σb (MPa)≥520
Yield strength : σ0.2 (MPa)≥205
Elongation: δ5 (%)≥40
Hardness : ≤187HB;≤90HRB;≤200HV
Density : 7.93g/cm3
specific heat capacity c(20℃)0.502 J·(g·C)-1
heat conductivity λ/W(m·℃)-1
melting point 1398～1420℃
304l Tensile Strength: σb (MPa)≥520
Yield strength : σ0.2 (MPa)≥205
Elongation: δ5 (%)≥40
Hardness : ≤187HB;≤90HRB;≤200HV



3. Payment  And Delivery time



Payment Payment by T/T, 30% as advance payment and 70% balance pay before shipping.



Delivery time

A.7 days if this goods is stock goods.

B.20 days if this goods will be produced after order
Validity Valid time is 3 days for price usually.

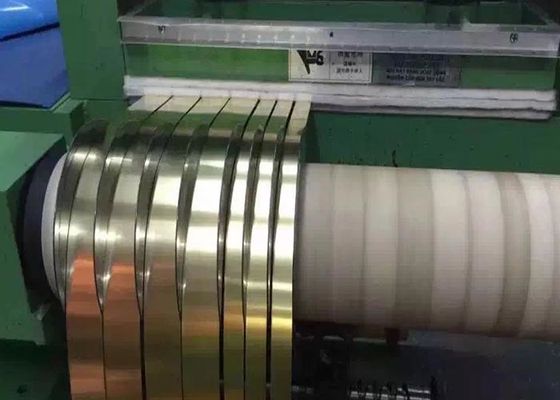

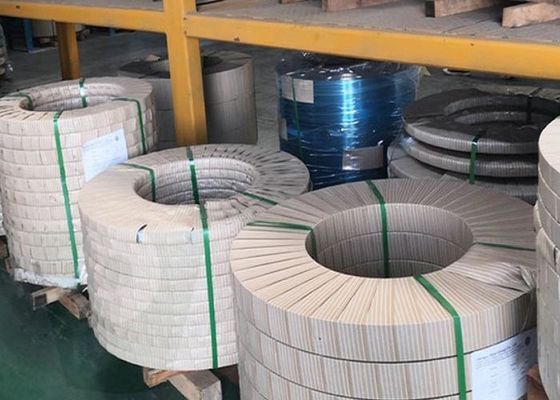

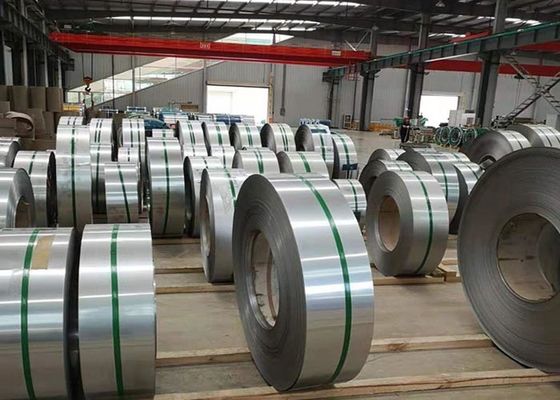

4. Surface of stainless steel sheet



Austenitic Ultrathin 316L Stainless Steel Strip Coil Chemical Resistant 0

Austenitic Ultrathin 316L Stainless Steel Strip Coil Chemical Resistant 1
