Thin Stainless Steel Strip Foil 0.01mm - 0.05mm Thickness

Place of Origin Shanghai
Brand Name TISCO ,BAOSTEEL
Certification ISO,BV
Model Number 201,304,316L
Minimum Order Quantity 2 ton
Price Negotiation
Packaging Details Standard Seaworthy package or as the customer's requirement.
Delivery Time 5-10 working days
Payment Terms L/C, T/T, Western Union, D/A
Supply Ability 2000 Ton/Month
Product Details
Technology Cold And Hot Rolled Type Sheet,Rod,Pipe,Coil
Item Stainless Steel Color Natural ,2B ,Polished
Shipping Air,Sea Thickness 0.01-3.0mm
High Light

Thin Stainless Steel Strip Foil BV standard

,

stainless steel sheet coil 0.01mm Thickness

,

0.05mm Thickness Stainless Steel Strip Foil

Leave a Message
Product Description

Thin Stainless Steel Strip Foil 0.01mm 0.015mm 0.02mm 0.025mm 0.03mm 0.04mm 0.05mm



chemical composition



Grade C Si Mn P S Ni Cr Mo Cu N Ti
SUS201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 ≤0.030 0.8-1.2 16-18 -- -- ≤0.25 --
SUS301 ≤0.15 ≤1.00 ≤2.00 ≤0.045 ≤0.030 6.0-8.0 16-18 -- -- ≤0.25 --
SUS304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.030 8.0-10.0 18-20 -- -- -- --
SUS310S ≤0.1 ≤1.50 ≤2.00 ≤0.045 ≤0.03 19-22 24-26 -- -- ≤0.10 --
SUS316L ≤0.07 ≤1.00 ≤2.00 ≤0.045 ≤0.30 10-14 16-18.5 2.0-3.0 -- ≤0.11 --
SUS430 ≤0.12 ≤0.750 ≤1.00 ≤0.040 ≤0.030 ≤0.60 16-18 -- -- -- --
SUS443 ≤0.015 ≤1.00 ≤1.00 ≤0.04 ≤0.030 -- ≥20 -- ≤0.3 ≤0.025 ≤0.8



Mechanical Property



Grade Temper Vickers Hardness Yield Strength Tensile Strength Elongation(%)
SUS201 ANN <200 >205 >515 >40
1/4H 200-250 >250 >550 >35
1/2H 250-310 >470 >780 >6
3/4H 310-370 >665 >930 >3
H 370-430 >880 >1130 --
SUS301 ANN <250 >205 >520 >40
1/4H 250-310 >470 >780 >35
1/2H 310-370 >510 >930 >10
3/4H 370-430 >745 >1130 >5
H 430-490 >1030 >1320 >3
EH 490-550 >1275 >1570 --
SH >550 >1500 >1850 --
SUS304 ANN <200 >205 >520 >40
1/4H 200-250 >255 >550 >35
1/2H 250-310 >470 >780 >6
3/4H 310-370 >665 >930 >3
H 370-430 >880 >1130 --
SUS310S ≤200 <200 >205 >520 >40
SUS316L ≤200 <200 >310 >620 >40
SUS430 ANN <200 >205 >450 >22
1/2H 200-250 >330 >505 >10
H 250-310 >420 >750 >6
SUS443 ANN <200 >305 >483 >31



Main purpose



Decoration board for elevator and escalator

Building decoration board, such as decorative structural parts, structural pipe

Automobile exhaust system components

Washing machine inner drum

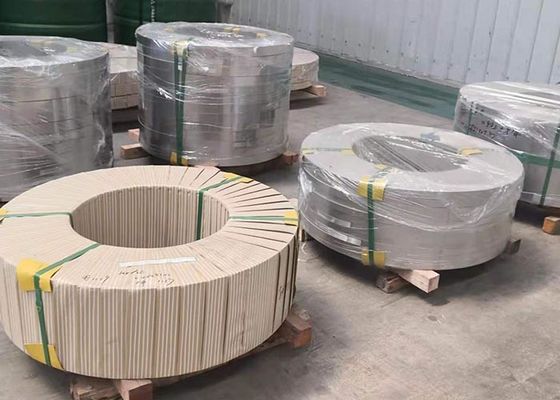

Thin Stainless Steel Strip Foil 0.01mm - 0.05mm Thickness 0

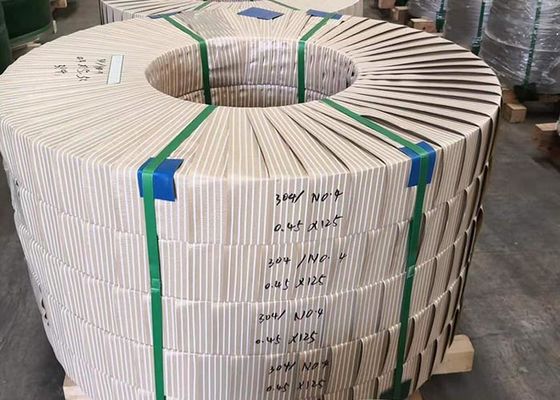

Thin Stainless Steel Strip Foil 0.01mm - 0.05mm Thickness 1Thin Stainless Steel Strip Foil 0.01mm - 0.05mm Thickness 2

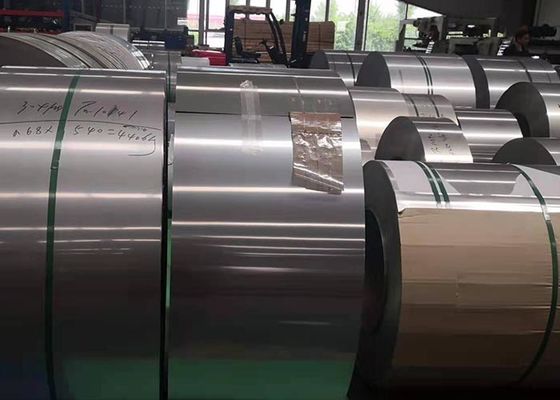

Thin Stainless Steel Strip Foil 0.01mm - 0.05mm Thickness 3
