AISI 420C EN 1.4034 DIN X46Cr13 Stainless Steel Sheet Plate 16mm

AISI 420C EN 1.4034 DIN X46Cr13 Stainless Steel Sheet Plate 16mm

Brand Name: BAOSTEEL , TISCO ,HONGWANG ,LISCO,
Model Number: AISI 420C EN 1.4034 DIN X46Cr13
MOQ: Negotiable
Price: Negotiation
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 T/Month
Detail Information
Place of Origin:
Shanghai ,Shanxi
Certification:
ISO ,SGS,BV
Name:
Hot Rolled Stainless Steel Sheet
Grade:
AISI 420C EN 1.4034 DIN X46Cr13
Width:
1000mm,1219mm,1250mm,1500mm
Color:
Customized
Standard:
JIS, AISI, ASTM, GB, DIN, EN
Shape:
Plate
Packaging Details:
Export Package
Supply Ability:
2000 T/Month
Highlight:

X46Cr13 Stainless Steel Sheet Plate

,

EN 1.4034 Stainless Steel Sheet Plate

,

X46Cr13 16mm steel plate

Product Description

AISI 420C EN 1.4034 DIN X46Cr13 Stainless Steel Sheet Plate Strip Coil



Hot Rolled Stainless Steel Sheet Parameters



Product name AISI 420C EN 1.4034 DIN X46Cr13 Stainless Steel Sheet Plate
Certificate ISO9001,BV,SGS or as per customer.
Surface
Size According to customer needs
Standard AISI, ASTM, GB,BS,EN,JIS,DIN
Application

Kitchenware, home appliances, construction decoration, stairs, refrigerated container,

burner parts, exhaust parts of auto

Feature





Representative type of Ferrite stainless steel, with magnetic
Good cost performance, price stability
Good shaping capability, weld bending capability, high thermal conductivity, low thermal expansion
Advantages Strong corrosion and decorative effect
TradeTerms FOB, CFR, CIF, EXW.
Payment Terms

T/T,L/C at sight

30%T/T in advance,balance 70% should be paid after receiving the copy of B/L.

Cooperation Ship-owner MSK, CMA, MSC, HMM, COSCO, UA, NYK, OOCL, HPL, YML, MOL

 High carbon martensitic grade AISI 420C, ( also known as 420HC, equivalent to EN 1.4034,

DIN X46Cr13, X40Cr14 ), which offers corrosion in water and steam.



Typical applications:

  1. professional knives, scissors
  2. medical instruments
  3. brake discs
  4. mechanical engineering parts



Chemical composition ( weight % )



C Si Mn Cr Ni
0.43~0.50 1.00 1.00 12.50~14.50 0.60 max




Hot Rolling Production Line For AISI 420C EN 1.4034 DIN X46Cr13    SHEET



Thickness
(mm)

Witth
(mm)

Length
(mm)

Precision
(mm)

Straightness
(mm)

Length Error
(mm)

Trimedge Thickness
(mm)

3.0-8.0 800-1600 1000-150000 ≤±1.5 ≤±1.0 ≤±1.5 ≤8.0
6.0-14.0 1000-2000 ≤14.0
8.0-18.0 1250-2000 ≤16.0

 SS Sheet  In Stock


NO.1 Finish T*W*L W*L W*L
NO.1 Finish 3.0*1500*6000 1800*6000 2000*6000
NO.1 Finish 4.0*1500*6000 1800*6000 2000*6000
NO.1 Finish 5.0*1500*6000 1800*6000 2000*6000
NO.1 Finish 6.0*1500*6000 1800*6000 2000*6000
NO.1 Finish 8.0*1500*6000 1800*6000 2000*6000
NO.1 Finish 10*1500*6000 1800*6000 2000*6000
NO.1 Finish 12*1500*6000 1800*6000 2000*6000
NO.1 Finish 14*1500*6000 1800*6000 2000*6000

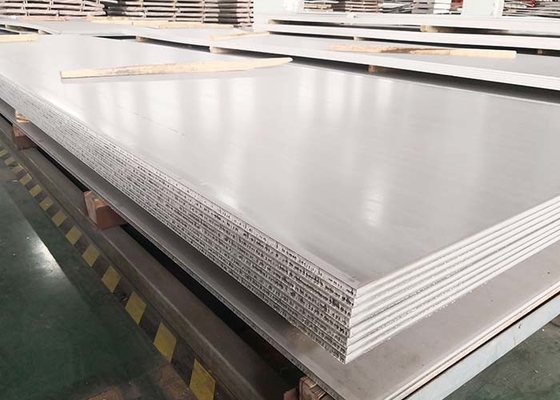

Hot Rolled Stainless Steel Sheet Details


AISI 420C EN 1.4034 DIN X46Cr13 Stainless Steel Sheet Plate 16mm 0
AISI 420C EN 1.4034 DIN X46Cr13 Stainless Steel Sheet Plate 16mm 1
