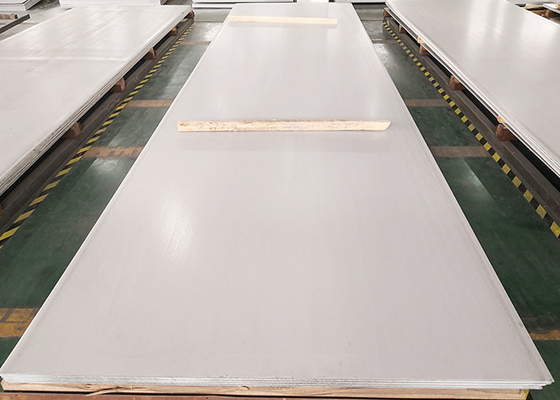

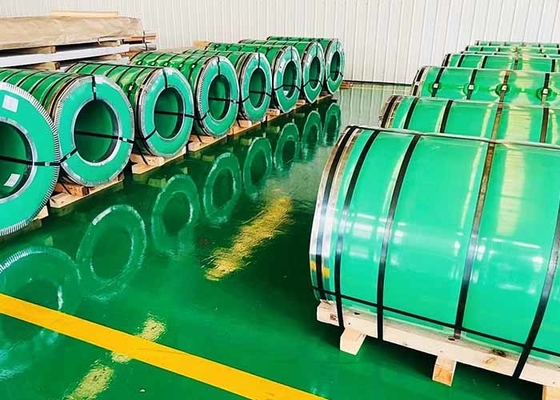

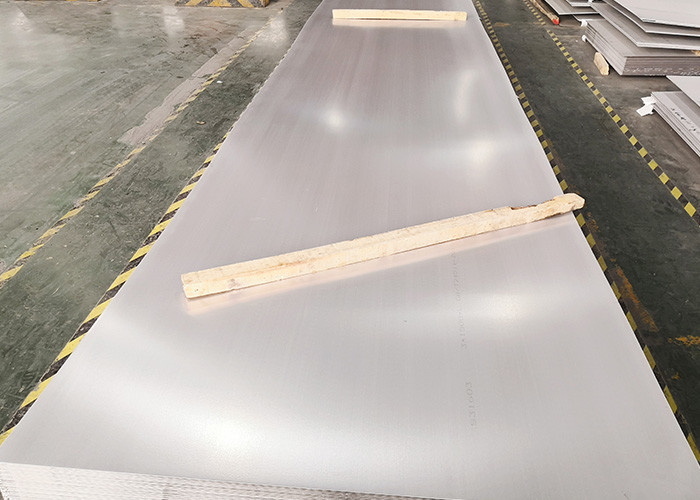

17-4PH SUS630 Hot Rolled Stainless Steel Sheet strip coil

Place of Origin WUXI
Brand Name BAOSTEEL , TISCO ,HONGWANG ,LISCO,
Certification ISO ,SGS,BV
Model Number 17-4PH SUS630
Minimum Order Quantity Negotiable
Price Negotiation
Packaging Details Export Package
Delivery Time 5-10 working days
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 2000 T/Month
Product Details
Name 17-4PH SUS630 Thickness 3-120mm
Finish NO1 Finish Width 1000mm,1219mm,1250mm,1500mm
Shape Sheet ,coil,plate Type Stainless Steel Hot Rolled Plate
High Light

SUS630 Hot Rolled Stainless Steel Sheet

,

17-4P Hot SteelHot Rolled Stainless Steel Sheet

,

17-4P Stainless Steel strip coil

Leave a Message
Product Description

17-4PH SUS630 Hot Rolled Stainless Steel Sheet And Strip In Coil



Grade 17-4PH (1.4542) is the most common example of the precipitation hardening stainless grades.17-4PH stainless combines good corrosion resistance with high strength and good impact toughness.



17-4PH develops its high strength from the precipitation of copper particles in its martensitic matrix.It comes in various conditions denoted by H plus ageing temperature in °F, for example H900, H1025 etc.The higher the ageing temperature, the lower is the strength and the higher are the ductility and toughness.The minimum 0.2% PS varies from 520 MPa to 1170 MPa depending on the condition.



17-4PH stainless grade combines the following characteristics:



Good corrosion resistance (just below that of 304)

High hardness and strength

Controlled balance of mechanical properties by ageing (precipitation hardening)

Improved toughness compared to 431 including use at sub-zero temperatures for the softer conditions

Magnetic

Thermal expansion comparable to carbon steel

Easier to weld than martensitic grades like 420 and 431 stainless



The combination of high strength and good corrosion resistance finds uses in:Drive shafts, bearings, gears, hydraulic rams, valve stems, load cells, bridge bearings, tensioning systems,golf clubs, quick release pins, fasteners, aerospace, medical devices, food processing, conveying equipment,fall arrest systems.17-4PH stainless is the natural choice of high strength, corrosion resistant steel particularly where standard

martensitic grades like 431 aren’t quite good enough.



Chemical composition ( weight % )



Grade C Si Mn P S Cr Ni Cb+Ta
SUS630, 17-4PH, S17400, EN 1.4542, DIN X5CrNiCuNb16-4 0.07 max 1.00 max 1.00 max 0.040 max 0.030 max 15.00~17.50 3.00~5.00 0.15~0.45


Commodity 17-4PH SUS630 Hot Rolled Stainless Steel Sheet And Strip In Coil
Brand TISCO ,BAOSTEEL,POSCO,JISCO,LISCO
Certification SGS,BV,IQI,TUV,ISO,etc
Thickness 0.2mm-150mm
Width 1000,1219,1250,1500mm, or as your requirements
Length 2000,2438,2500,3000,6000mm, or as your requirements
Surface No.1, 2B, BA, 8K Mirror, Hairline,satin, Embossed,brush,No.4,HL,matt,pvc film,laser film.
Standard ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc
Delivery time 5-7 days after confirming the order
MOQ 1 Ton
Advantages Showing the splendor of your quality, wearresistant as well , strong corrosion resistance and decorative effect, durable and beautiful in good taste.



Trade Terms:



1. Delivery time: 5-10days or as the final order

2. Package: steel pallet

3. Payment: 30% TT /LC at sight

4. Quality confirmed: Inspect by three party(such as KRT), Your office

5.productivity:5000tons/M
