EN 1.4526 AISI 436 CR Steel Plate 1mm High Impact Resistance
| Place of Origin | Shanghai |
|---|---|
| Brand Name | BAOSTEEL , TISCO ,HONGWANG ,LISCO， |
| Certification | ISO ,SGS,BV |
| Model Number | 430，304 316l 904l |
| Minimum Order Quantity | 1 ton according to products |
| Price | Negotiation |
| Packaging Details | Export Package |
| Delivery Time | 5-7 working days |
| Payment Terms | T/T, D/P, Western Union |
| Supply Ability | 1500 T/Month |
Product Details
| Name | Cold Rolled Stainless Steel Sheet EN 1.4526 AISI 436 | Material | EN 1.4526 AISI 436 |
|---|---|---|---|
| Thickness | 0.3-16mm, 0.3mm-6mm | Surface | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D, HL, 8K, 2B, BA |
| Edge | Mill Edge, Smooth Edge, Slit Edge | Technique | Cold Rolled Finish, Hot Rolled, Cold Drawn |
| High Light | AISI 436 CR steel plate,EN 1.4526 CR steel plate,AISI 436 cold rolled stainless steel plate |
||
Product Description

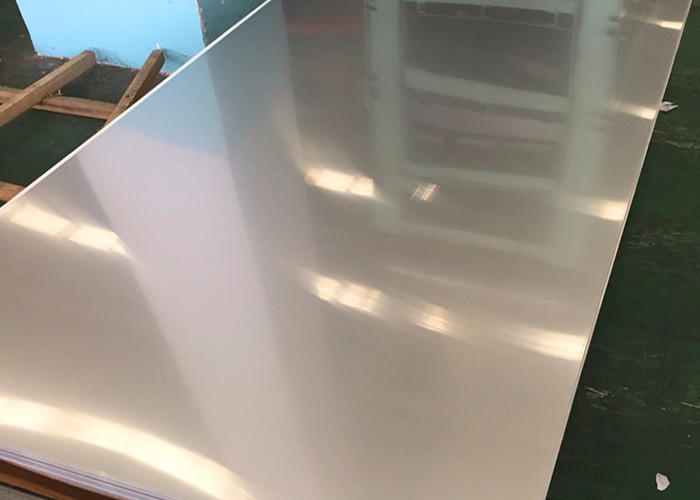

Cold Rolled Steel Plate High Impact Resistance Cut To Length EN 1.4526 AISI 436 1mm
Stainless steel does not stain, corrode, or rust as easily as regular carbon steel and provides high strength and impact resistance along with the aesthetic appeal. The material also has anti-bacterial qualities and is easy to clean and sanitize.Stainless steel sheet and stainless steel plate are both a perfect solution for applications that require a durable metal with anti-oxidation qualities.
Type 436 is a modification of Type 430 with columbium and molybdenum added to reduce the tendency of wavy lines, or roping, during forming. It has improved corrosion resistance and weldability. Automotive and appliance trims are typical applications.
Chemical Composition
Chemical Composition (wt%) limits as specified in ASTM A240 and ASME SA240*
| Element | 436 |
| Carbon | 0.12 |
| Chromium | 16.0-18.0 |
| Molybdenum | 0.75-1.25 |
| Manganese | 1.00 |
| Silicon | 1.00 |
| Phosphorus | 0.040 |
| Sulfur | 0.030 |
* Maximum, unless range is indicated
Mechanical Properties
Mechanical property requirements for annealed product as specified in ASTM A240 and ASME SA240
| Property | 436 |
| Yield Strength, min. (ksi) | 40 |
| Tensile Strength, min. (ksi) | 65 |
| Elongation, min. (%) | 20 |
| Hardness, max. (Rb) | 90 |
Physical Properties
Physical properties for Type 436 stainless steel
| Property | 436 Data |
| Density, lb/in3 | 0.276 |
| Modulus of Elasticity, psi | 29.0 x 106 |
| Coefficient of Thermal Expansion, 68-212˚F, /˚F | 5.6 x 10-6 |
| Thermal Conductivity, Btu/ft hr ˚F | 13.0 |
| Specific Heat, Btu/lb ˚F | 0.11 |
| Electrical Resistivity, Microohm-in | 23.6 |
|
Type
|
Cold Drawn or Hot Rolled
|
|
Thickness
|
0.3-260mm
|
|
Width
|
1000, 1219, 1500, 2000, 2500, 3000mm etc.
|
|
Length
|
1000, 1500, 2438, 3000, 5800, 6000, 9000, 12000mm etc.
|
|
Standard
|
ASTM JIS AISI GB DIN EN
|
|
Surface Finished
|
BA, 2B, NO.1, NO.4, 4K, HL, 8K
|
|
Application
|
It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture,
and ship components. It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen mesh etc. . |
|
Certification
|
CE, ISO, SGS, BV
|
|
Technique
|
Hot rolled or cold drawing
|
|
Edge
|
Mill Edge / Slit Edge
|
|
Quality
|
SGS Inspection
|
|
Grade(ASTM UNS)
|
201 202 301 304 304L 321 316 316L 317L 347H 309S 310S 904L S32205 2507 254SMOS 32760 253MA N08926 etc.
|
|
Grade (EN)
|
1.4301, 1.4307, 1.4541, 1.4401, 1.4404 ,1.4571, 1.4438, 1.4539, 1.4547, 1.4529, 1.4562, 1.4410, 1.4878, 1.4845, 1.4828, 1.4876,
2.4858, 2.4819 |
|
Main market
|
Asia/Europe/ South America
|
|
Brand Name
|
TISCO
|
|
Delivery time
|
Within 7-10 Working Days
|
|
Port of Loading
|
Shanghai China
|
|
Price Terms
|
CIF CFR FOB EX-WORK
|
|
Export Packing
|
Waterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package
|
|
Supply Ability
|
5000 Ton/Tons per Month
|
|
Payment Terms
|
T/T L/C and Western Union etc.
|
Package
Standard export package with Kraft paper with wooded trays or as required,containers sizes as follows
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS
We have stainless steel plate, diamond plate, 2B & 2D stainless steel sheet, stainless steel polished sheet, stainless steel flat &expanded sheet, and perforated stainless steel sheet and other plates.
XFT METAL is a comprehensive company, who is Specialized in stainless steel products, seamless steel pipe, welded steel pipe,steel coil and plates. It is located in wuxi , the Steel base of China.
Since our establishment, we have always adhered to the business policy of "Quality for Survival, Product for Development, Credibility for Cooperation and Service for Customer".
