| Place of Origin: | Jiangsu ,China |
|---|---|
| Brand Name: | XFT |
| Certification: | SGS |
| Minimum Order Quantity: | 15kg |
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 5- 8 working day |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 kg per week |
| Model Number: | Hastelloy C276 Wire | Customized: | OEM, ODM, OBM |
|---|---|---|---|
| Diameter: | 0.8mm-5.0mm | Shape:: | Round Wire |
| Port:: | Shanghai,Ningbo,Shenzhen | Flux Content: | 0.03% |
| High Light: | Nickel Based Alloy Wire Strip Bar,0.8mm Hastelloy C276 Wire,Hastelloy C276 Wire Strip Bar |
||

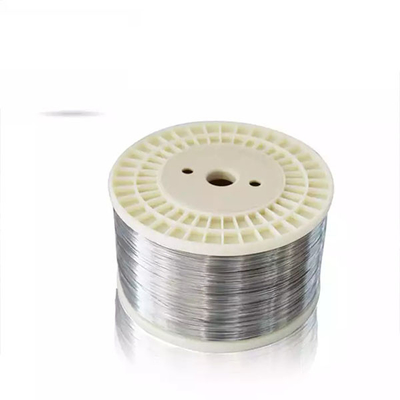

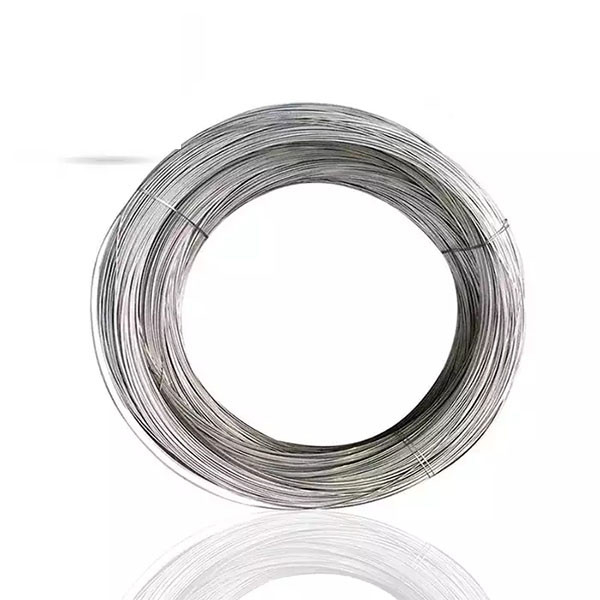

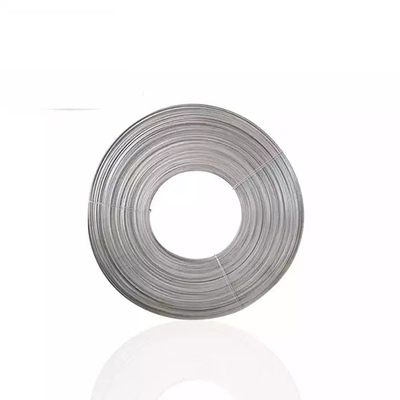

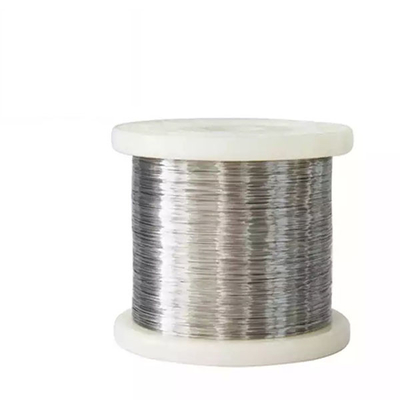

Customized Nickel Based Alloy Hastelloy C276 Wire
used for welding nickel-chromium-molybdenum alloy (ASTM B 443, B 444, and B 446 having UNS number N06625) to itself, to steel, to other nickel-base alloys, for cladding steel with nickel-chromium molybdenum weld metal, and for welding the clad side of joints in steel with nickel-chromium-molybdenum alloy using the GTAW, GMAW, SAW, and PAW processes. This welding wire is recommended for applications where the operating temperature ranges from cryogenic to 1000°F [540°C].
| Item | HC-276 | C-22 | C-4 | B2 | B3 | N |
| C | ≤0.01 | ≤0.015 | ≤0.015 | ≤0.02 | ≤0.01 | 0.04-0.08 |
| Mn | ≤1 | ≤0.5 | ≤1 | ≤1 | ≤3 | ≤1 |
| Fe | 4-7 | 2-6 | ≤3 | ≤2 | ≤1.5 | ≤5 |
| P | ≤0.04 | ≤0.02 | ≤0.04 | ≤0.04 | -- | ≤0.015 |
| S | ≤0.03 | ≤0.02 | ≤0.03 | ≤0.03 | -- | ≤0.02 |
| Si | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.1 | ≤0.1 | ≤1 |
| Ni | rest | rest | rest | rest | ≥65 | rest |
| Co | ≤2.5 | ≤2.5 | ≤2 | ≤1 | ≤3 | ≤0.2 |
| Ti+Cu | -- | -- | ≤0.7 | -- | ≤0.4 | ≤0.35 |
| Al+Ti | -- | -- | -- | -- | ≤0.5 | ≤0.5 |
| Cr | 14.5-16.5 | 20-22.5 | 14-18 | ≤1 | ≤1.5 | 6-8 |
| Mo | 15-17 | 12.5-14.5 | 14-17 | 26-30 | ≤28.5 | 15-18 |
| B | -- | -- | -- | -- | -- | ≤0.01 |
| W | 3-4.5 | 2.5-3.5 | -- | -- | ≤3 | ≤0.5 |
| V | ≤0.35 | ≤0.35 | -- | 0.2-0.4 | -- | ≤0.5 |
Hastelloy Form: Pipe / Tube (welded and seamless), Plate / Sheet, Bar, Wire, Fittings
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
Other product series :
FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.
NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.
CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/
Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.
Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.
Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.
Incoloy alloy: Incoloy 800,800H,800HT,825,925.
Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.
Monel Alloy: Monel 400,K500.
High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.
Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.
Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.
