| Place of Origin: | Jiangsu ,China |
|---|---|
| Brand Name: | XFT |
| Certification: | SGS |
| Model Number: | Sheet Ni201 |
| Minimum Order Quantity: | 15kg |
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 5- 8 working day |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 kg per week |
| Customized: | OEM, ODM, OBM | Model Number: | Sheet Ni201 |
|---|---|---|---|
| Diameter: | 0.05mm-3.0mm | Shape:: | Round Wire |
| Port:: | Shanghai,Ningbo,Shenzhen | Flux Content: | 0.03% |
| Highlight: | High Purity Pure Nickel Thin Plate,N6 0.1mm Nickel Thin Plate,magnetic Nickel Thin Plate |
||

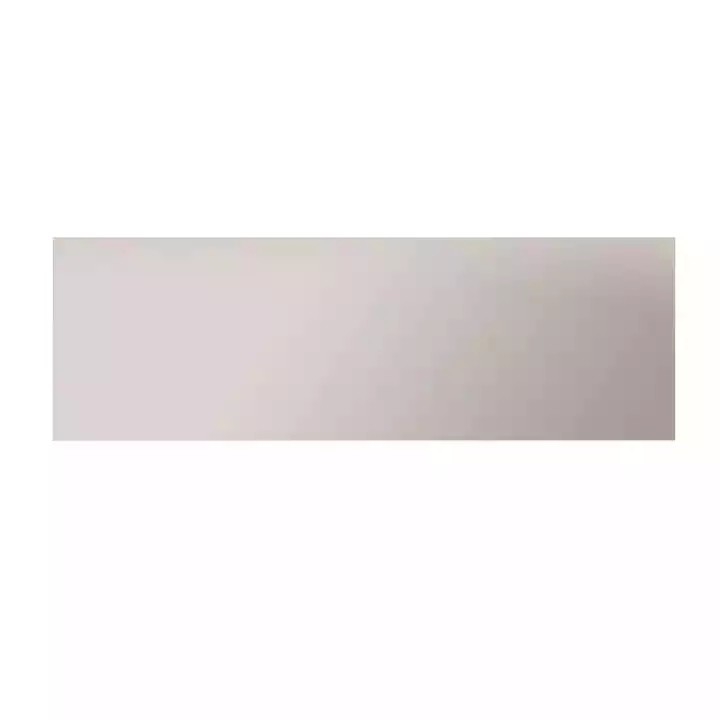

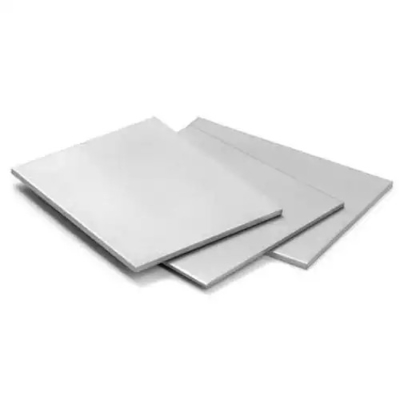

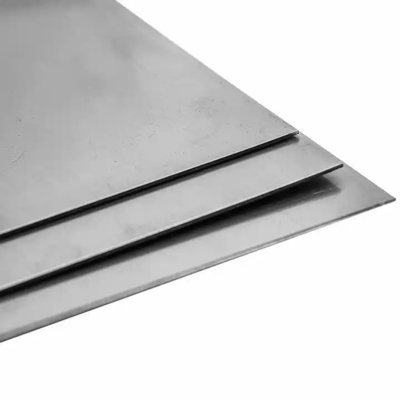

High purity 99.5% N4 N6 Pure Nickel Thin Plate Price 0.1mm Thickness
Wire: 0.025-10mm
Ribbon: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
Sheet : 0.05~30mm*20~1000mm*1200~2000mm
| Grade | Chemical Composition(%) | ||||||||
| Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe | |
| N4/201 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
| N6/200 | 99.5 | 0.1 | 0.1 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 |
Applications
Manufacture and handling of sodium hydroxide, particularly at temperature above 300C. Production of viscose rayon. Manufacture of soap.
Analine hydrochloride production and in the chlorination of aliphatic hydrocarbons such as benzene, methane and ethane. Manufacture of vinyl chloride monomer. Reactors and vessels in which fluorine is generated and reacted with hydrocarbons.
1. Low resistance, make the battery pack more powerful, save energy.
2. Pure Nickel to make it easy welding, stable connection
3. Dood tensile and easy operate assembly.
4. shaped design, save too much work for customer to assembly battery pack.
5. High Electrical Conductivity
6. Anti-corrosive and low resistance
Other product series :
FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.
NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.
CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/
Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.
Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.
Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.
Incoloy alloy: Incoloy 800,800H,800HT,825,925.
Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.
Monel Alloy: Monel 400,K500.
High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.
Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.
Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.
