| Place of Origin: | Jiangsu ,China |
|---|---|
| Brand Name: | XFT |
| Certification: | SGS |
| Minimum Order Quantity: | 15kg |
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 5- 8 working day |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 kg per week |
| Model Number: | Monel 400 | Customized: | OEM, ODM, OBM |
|---|---|---|---|
| Thickness: | 0.05mm-3.0mm | Shape:: | Bar,sheet，coil,pipe |
| Port:: | Shanghai,Ningbo,Shenzhen | Flux Content: | 0.03% |
| High Light: | Anti Corrosion Nickel Alloy,N04400 Nickel Based Alloy,Monel 400 Nickel Based Alloy |
||

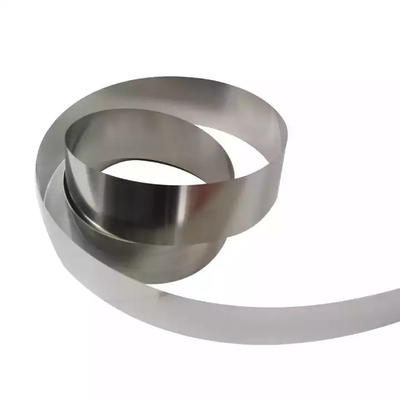

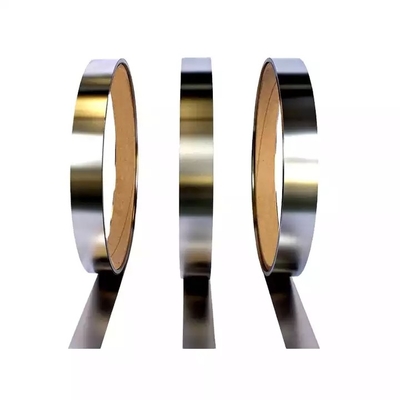

N04400 Anti Corrosion Nickel Alloy Strip Price of Monel 400
| Item | Ni% | Cu% | Fe% | Mn% | C% | Si% | S% |
| Monel 400 | Min63 | 28-34 | Max 2.5 | Max 2.0 | Max 0.3 | Max 0.5 | Max 0.024 |
| Item | Density | Melting Point | Tensile Strength (Rm N/mm2) | Yield Strength (RP0.2N/mm2) | Elongation (A5 %) | HB |
| Monel 400 | 8.83g/cm3 | 1300℃-1390℃ | 480 | 170 | 35 | ≥331 |
| Monel 400 | Bar | Forging | Pipe | Sheet/Strip | Welding Wire |
| Standard | ASTM B164 | ASTM B564 | ASTM B165 | ASTM B127 | ERNiCu-7 |
1. Low resistance, make the battery pack more powerful, save energy.
2. Pure Nickel to make it easy welding, stable connection
3. Dood tensile and easy operate assembly.
4. shaped design, save too much work for customer to assembly battery pack.
5. High Electrical Conductivity
6. Anti-corrosive and low resistance
Other product series :
FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.
NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.
CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/
Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.
Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.
Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.
Incoloy alloy: Incoloy 800,800H,800HT,825,925.
Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.
Monel Alloy: Monel 400,K500.
High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.
Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.
Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.
