Place of Origin: | Shanghai |
---|---|
Brand Name: | TISCO, BAOSTEEL, ZPSS, LISCO, ect |
Certification: | ISO, SG, MTC |
Model Number: | 201, 202, 304, 316 |
Minimum Order Quantity: | 1 ton |
Price: | Negotiation |
Packaging Details: | Interlayer paper kraft paper Wooden pallet or according to customer's request. |
Delivery Time: | 7-15 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000TON Per month |
Name: | Stainless Steel Plate | Thickness: | 0.3-3mm |
---|---|---|---|
Surface Finish: | 2B | Tolerance: | ±1% |
Grade: | 300 Series | Width: | 600-1500mm |
Model Number: | 410 410s 420 430 441 440c | Length: | 1500mm |
Highlight: | 5mm cold rolled stainless steel plate,2b cold rolled stainless steel plate,6mm stainless steel cold rolled plate |

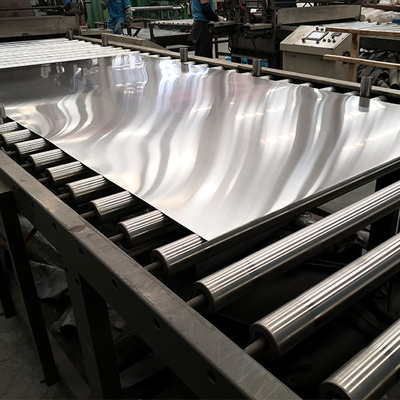

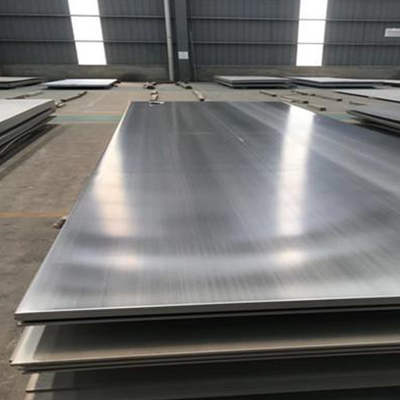

Cold Rolled 5mm 6mm Thick SUS 304 2B Stainless Steel Sheet Plate
Cold-rolled 5mm and 6mm thick 2B surface treated SUS 304 stainless steel sheet plates are a common material. SUS 304 is a stainless steel alloy with good corrosion resistance and high temperature resistance. 2B surface treatment means that the sheet is further processed after cold rolling, acid washing, and annealing to obtain a clean, bright and moderately smooth surface. This type of stainless steel plate is commonly used in the manufacturing industry of architecture, decoration, chemical engineering, and so on, such as kitchen utensils, hotel equipment, pharmaceutical equipment, etc.
Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
SUS201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤0.030 | 0.8-1.2 | 16-18 | -- | ≤0.25 |
SUS301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 6.0-8.0 | 16-18 | -- | ≤0.25 |
SUS304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.0-10.0 | 18-20 | -- | -- |
SUS310S | ≤0.1 | ≤1.50 | ≤2.00 | ≤0.045 | ≤0.03 | 19-22 | 24-26 | -- | ≤0.10 |
SUS316L | ≤0.07 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.30 | 10-14 | 16-18.5 | 2.0-3.0 | ≤0.11 |
SUS430 | ≤0.12 | ≤0.750 | ≤1.00 | ≤0.040 | ≤0.030 | ≤0.60 | 16-18 | -- | -- |
Grade | Temper | Vickers Hardness | Yield Strength | Tensile Strength | Elongation(%) |
SUS201 | ANN | <200 | >205 | >515 | >40 |
1/4H | 200-250 | >250 | >550 | >35 | |
1/2H | 250-310 | >470 | >780 | >6 | |
3/4H | 310-370 | >665 | >930 | >3 | |
H | 370-430 | >880 | >1130 | -- | |
SUS301 | ANN | <250 | >205 | >520 | >40 |
1/4H | 250-310 | >470 | >780 | >35 | |
1/2H | 310-370 | >510 | >930 | >10 | |
3/4H | 370-430 | >745 | >1130 | >5 | |
H | 430-490 | >1030 | >1320 | >3 | |
EH | 490-550 | >1275 | >1570 | -- | |
SH | >550 | >1500 | >1850 | -- | |
SUS304 | ANN | <200 | >205 | >520 | >40 |
1/4H | 200-250 | >255 | >550 | >35 | |
1/2H | 250-310 | >470 | >780 | >6 | |
3/4H | 310-370 | >665 | >930 | >3 | |
H | 370-430 | >880 | >1130 | -- | |
SUS310S | ≤200 | <200 | >205 | >520 | >40 |
SUS316L | ≤200 | <200 | >310 | >620 | >40 |
SUS430 | ANN | <200 | >205 | >450 | >22 |
1/2H | 200-250 | >330 | >505 | >10 | |
H | 250-310 | >420 | >750 | >6 |
Thickness | Width * Length | Thickness | Width * Length |
0.3mm | 1000mm*2000mm 1220mm*2440mm 1220mm*3048mm 1500mm*3000mm | 4mm | 1500mm*6000mm 1800mm*6000mm 2000mm*6000mm 2200mm*6000mm |
0.4mm | 5mm | ||
0.5mm | 6mm | ||
0.6mm | 8mm | ||
0.7mm | 9mm | ||
0.8mm | 10mm | ||
0.9mm | 15mm | ||
1mm | 20mm | ||
1.2mm | 25mm | ||
1.5mm | 30mm | ||
2mm | 35mm | ||
2.5mm | 40mm | ||
3mm | 45mm | ||
We Can Customize Any Size, Please Contact US. |
FAQ
Q: What is your terms of payment?
A: We usually accept T/T in advance, L/C for large sum. If you prefer other payments terms, please discuss.
Q: What is the terms of delivery?
A: EXW, FOB, CIF
Q: What is the terms of packing?
A: Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirements.
Q: What is your delivery time?
A: For products in stock, we can ship it within 7 days after receiving the deposit.For custom order, production time is 15-30 workdays after received the deposit.
Q: Could you produce according to the samples?
A: Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q: Can I place an sample order and what is your MOQ if I accept your quality?
A: Yes, we can send you samples but you may pay the express fees, our MOQ is 1 ton.
Q: How could you guarantee your products?
A: We accept and support the third-party inspection.We also could issue the warranty to customer to guarantee the quality.
Q: Where is the port of shipment?
A: Ningbo or Shanghai sea port.
