300 Series Hot Rolled Stainless Steel Sheet 304 Thickness 3MM - 120MM DIN 1.4301
|Place of Origin||Shanghai ,Shanxi|
|Brand Name||BAOSTEEL , TISCO ,HONGWANG ,LISCO，|
|Model Number||300 Series 304|
|Minimum Order Quantity||1 ton according to products|
|Packaging Details||Export Package|
|Delivery Time||5-10 working days|
|Payment Terms||L/C, T/T, D/P, Western Union|
|Supply Ability||2000 T/Month|
|Width||1000mm,1219mm,1250mm,1500mm||Color||Natural Surface Or As Customized|
|Model No||304||Standard||ASTM /JIS/GB|
stainless steel sheet 2b finish,
hairline finish stainless steel sheet

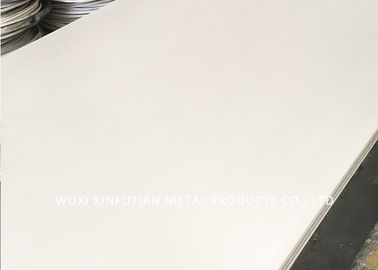

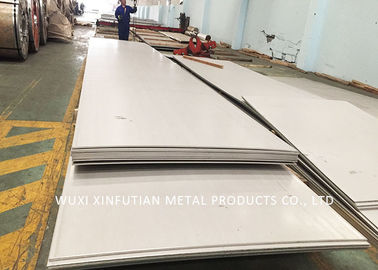

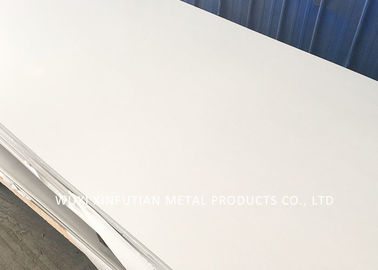

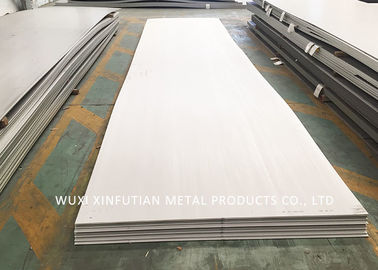

304 DIN 1.4301 3mm-120mm Thickness NO1 Finish Hot Rolled Stainless Steel Sheet
300 Series stainless steels are classified as austenitic, and are hardenable only by cold working methods. These grades of stainless have chromium (approx. 18 to 30%) and nickel (approx. 6 to 20%) as their major alloying additions. Type 304 is the most widely used alloy of all stainless steels. 300 Series Stainless steel alloys resist corrosion, maintain their strength at high temperatures and are easy to maintain.
304 standards CHINA:06Cr19Ni10 ASTM/ASME: S30400 DIN: 1.4301
1. Products Details
|Commodity||300 Series 316 Stainless Steel Plate|
|Width||1000,1219,1250,1500mm, or as your requirements|
|Length||2000,2438,2500,3000,6000mm, or as your requirements|
|Delivery||5-7 days after confirming the order|
|MOQ||1 Ton according to products|
2. Chemical Properties:
C: ≤0.08 ,Si:≤1.0 ,Mn: ≤2.0 ,Cr:18.0～20.0 ,Ni: 8.0～10.0,S: ≤0.03 ,P: ≤0.045
|Tensile strength σb (MPa|
|Specific heat capacity(0 ~ 100 ℃, KJ kgK)|
|Conditions yield strength|
σ0.2 (MPa) ≥ 205
|Thermal conductivity (W m. K)|
(100 ℃), 16.3 21.5 (500 ℃)
|Elongation δ5 (%)|
|The linear expansion coefficient k.|
(0 ~ 100 ℃), 17.2 (0 ~ 500 ℃) of 18.4
|Section shrinkage ψ (%)|
|Resistivity (20 ℃, 10 Ω m.)|
≤ 187HB; ≤ 90HRB; ≤ 200HV
|The longitudinal elastic modulus (20 ℃, KN/mm)||193|
|Melting point (℃)|
1398 ~ 1454
|Specific heat capacity||0.50|
Food preparation equipment, especially in chloride environments
Chemical processing, equipment
Laboratory benches and equipment
Rubber, plastics, pulp & paper machinery
Pollution control equipment
Boat fittings, value and pump trim
Pharmaceutical and textile industries
Condensers, evaporators and tanks
Mostly Stainless steel sheet cut from stainless steel coil, but according to the thickness.If thickness is very thick, it will be sheets directly. Below are some steps of sheets process.
Grinding finish, also called brushed, directional or satin finish. coil or sheet...
polished stainless steel sheet uses grinding fluid to polish by polishing equipment on stainless steel ..
3. PVD COLOR COATING
PVD means Physical Vapor Deposition,working in vacuum condiction.....
Etching is corrode different kinds of patterns on stainless steel surfaces by chemical methods.
It is physical rolling on the stainless steel surface, pattern comes from metal roller....
|Price Term||FOB CIF CNF|
|Payment||L/C at sight or 30% TT as deposit|
|Delivery Time||5-10 days after receiving deposit by T/T or L/C.|
|Sample||Samples free and express charges bear by you|
Standard export package with Kraft paper with wooded trays or as required,containers sizes as follows
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS
1. Q: Could you support free sample?
A:Yes.We can supply free samples.But the delivery charges will be covered by our customers.
2. Q: How about the delivery time?
A:Within 15-20days after receiving the deposit or L/C at sight.
3. Q: How about the trade terms?
A:,FOB,CIF will be accepted.
4. Q: How about your payment terms?
A:30%TT in advance and the balance against of copy of B/L.
The irrevocable L/C at sight will be accepted.
5. Q: How many coutries you already exported ?
A:Exported to more than 20 countries mainly from America, Vietnam, UK, Thailand, Egypt, Iran, Turkey, Jordan, etc.
6. Q: How does your company do regarding quality control?
A:BV and SGS certificates, production process followed the ISO 9000 system.
