Hairline Finish 304 Stainless Steel Kick Plate Thickness 1.02mm Laser Cutting

Place of Origin Shanghai ,Shanxi
Brand Name BAOSTEEL , TISCO ,HONGWANG ,LISCO，
Certification ISO ,SGS,BV
Model Number 300 Series 304
Minimum Order Quantity 1 ton according to products
Price Negotiation
Packaging Details Export Package
Delivery Time 5-10 working days
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 2000 T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thickness 0.3-3.0 Finish Hairline
Width 304.8mm,101.06mm,203.2mm Color Natural Surface Or As Customized
Length 863.6mm Design OEM ODM
High Light

stainless steel kick plate

,

embossed stainless steel sheets
Leave a Message
Product Description

304 1.02mm  Hairline Finish Stainless Steel Kick Processing Plate With Laser Cutting



300 Series stainless steels are classified as austenitic, and are hardenable only by cold working methods. These grades of stainless have chromium (approx. 18 to 30%) and nickel (approx. 6 to 20%) as their major alloying additions. Type 304 is the most widely used alloy of all stainless steels. 300 Series Stainless steel alloys resist corrosion, maintain their strength at high temperatures and are easy to maintain.



304 standards CHINA:06Cr19Ni10 ASTM/ASME: S30400 DIN: 1.4301



1. Products Details



Commodity 300 Series 304 Stainless Steel Kick  Sheet With Laser Cutting
Grade 301,302,304,304L,316,316L,310S,309S,321,301,310
Brand TISCO ,BAOSTEEL,POSCO,JISCO,LISCO
Certification SGS,BV,IQI,TUV,ISO,etc
Thickness 0.3-3.0mm
Width 1000,1219,1250,1500mm, or as your requirements
Length 2000,2438,2500,3000,6000mm, or as your requirements
Surface Hairline
Standard ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc
Delivery 5-7 days after confirming the order
MOQ 1 Ton according to products

2. Chemical Properties:

C:≤0.08 ,Si :≤1.0 ,Mn :≤2.0 ,Cr :18.0～20.0 ,

Ni :8.0～10.0,S :≤0.03 ,P :≤0.045



3. Processing



Mostly Stainless steel sheet cut from stainless steel coil ,but according to the  thickness.If thickness is very thick ,it will be sheets  directly.Below are some steps of  sheets process.



1.GRINDING

Grinding finish, also called brushed, directional or satin finish. coil or sheet...

2.POLISHING

polished stainless steel sheet uses grinding fluid to polish by polishing equipment on stainless steel ..

3.PVD COLOR COATING

PVD means Physical Vapor Deposition,working in vacuum condiction.....

4.ETCHING

Etching is corrode different kinds of patterns on stainless steel surfaces by chemical methods.

5.EMBOSSING

It is physical rolling on the stainless steel surface, pattern comes from metal roller....



4. Applications:

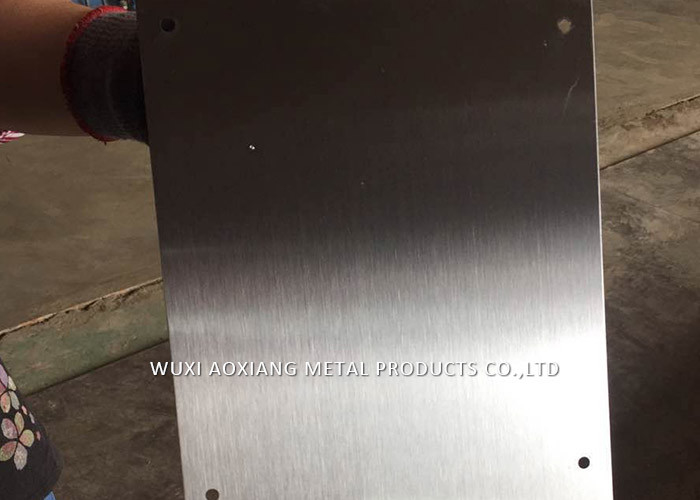

Stainless Steel Kick Sheet mainly is used for the hotel project or the bottom of the door,in order to protect the door .



Each sheet size :1.02*203.2*863.6 1.02*101.6*863.6

Finish : one side hairline finish with film protect

Hole :10 holes each sheet ,hole size 6mm laser cutting

screw :6mm*10mm

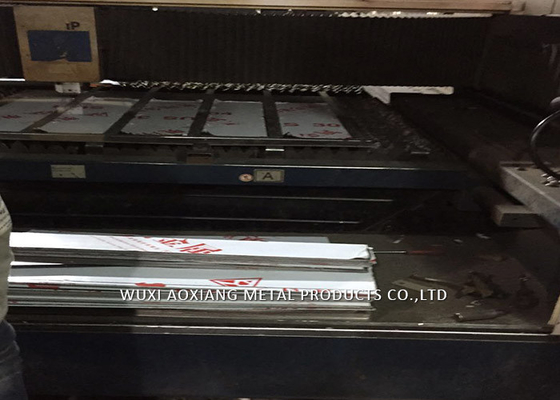

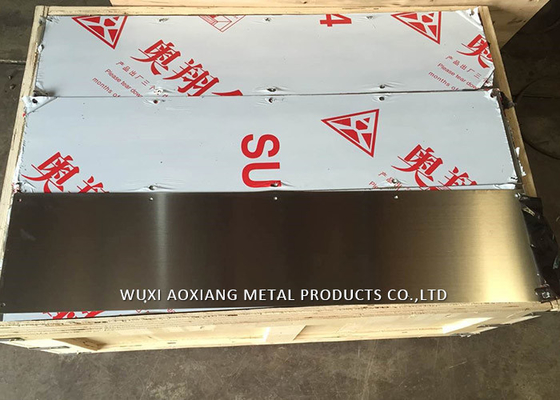

Some picures of processing



Hairline Finish 304 Stainless Steel Kick Plate Thickness 1.02mm Laser Cutting 0
