| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | BAOSTEEL , TISCO ,HONGWANG ,LISCO |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 316 316L |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 T/Month |
| Thickness: | 3-120mm | Finish: | NO 1 |
|---|---|---|---|
| Width: | 1000mm,1219mm,1250mm,1500mm | Color: | Natural Surface Or As Customized |
| Standard: | ASTM/JIS/GB | Length: | 6m Or As Customized |
| High Light: | mirror finish stainless steel sheet,hairline finish stainless steel sheet |
||

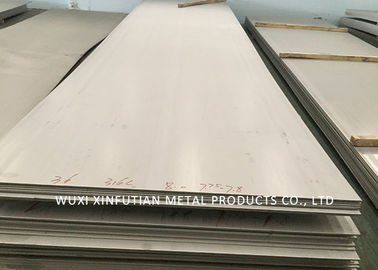

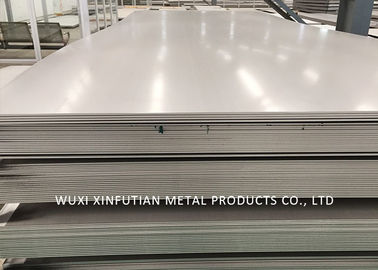

DIN 1.4401 5mm - 7mm Thickness Hot Rolled Stainless Steel Sheet NO1 Finish
WUXI XINFUTIAN METAL inventory includes 316/316L (UNS S31600 / S31603), in sheet, sheet coil, plate, plate coil, bar, structural and tubular products. Generally, this grade is dual-certified to meet both 316 and 316L. Alloy 316/316L is ideally suited for applications requiring corrosion resistance superior to Type 304 and has good elevated temperature strength.
316 standards CHINA:06Cr17Ni12Mo2 ASTM/ASME: UNS S31600 DIN: 1.4401
Products Details
| Commodity | 300 Series 316 Stainless Steel Plate |
| Grade | 301,302,304,304L,316,316L,310S,309S,321,301,310 |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 3mm-120mm |
| Width | 1000,1219,1250,1500mm, or as your requirements |
| Length | 2000,2438,2500,3000,6000mm, or as your requirements |
| Surface | No.1 |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery | 5-7 days after confirming the order |
| MOQ | 1 Ton according to products |
| C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 (S31600) |
0.08 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| 316L (S31603) |
0.03 max |
2.0 max |
0.75 max |
0.045 max |
0.03 max |
min: 16.0 max: 18.0 |
min: 2.0 max: 3.0 |
min: 10.0 max: 14.0 |
0.10 max |
| Grade | Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 316 (S31600) |
75 | 30 | 40 | 217 | 95 |
| 316L (S31603) |
70 | 25 | 40 | 217 | 95 |
Resistance
Corrosion Resistance:
1) Generally more resistant than 304 in range of atmospheric environments and many corrosive media due to the increased chromium and molybdenum content.
2) Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 122°F (50°C).
3) Considered resistant to potable water with up to about 1000mg/L chlorides at ambient temperatures, reducing to about 500mg/L at 140°F (60°C).
4) Usually regarded as the “marine grade stainless steel” – but is not resistant to warm sea water.
Heat Resistance:
1) Good oxidation resistance in intermittent service to 1600°F (870°C) and in continuous service to 1700°F (925°C)
2) Grade 316L is more resistant to carbide precipitation.
Applications:
Food preparation equipment, especially in chloride environments
Chemical processing, equipment
Laboratory benches and equipment
Rubber, plastics, pulp & paper machinery
Pollution control equipment
Boat fittings, value and pump trim
Heat exchangers
Pharmaceutical and textile industries
Condensers, evaporators and tanks
