Place of Origin: | Shanghai ,Shanxi |
---|---|
Brand Name: | BAOSTEEL , TISCO ,HONGWANG ,LISCO, |
Certification: | ISO ,SGS,BV |
Model Number: | 300 Series 304 |
Minimum Order Quantity: | 1 ton according to products |
Price: | Negotiation |
Packaging Details: | Export Package |
Delivery Time: | 5-10 working days |
Payment Terms: | L/C, T/T, D/P, Western Union |
Supply Ability: | 2000 T/Month |
Thickness: | 3-120mm | Finish: | NO 1 |
---|---|---|---|
Width: | 1000mm,1219mm,1250mm,1500mm | Color: | Natural Surface Or As Customized |
Shape: | Sheet | Standard: | JIS/ASTM/GB |
Highlight: | stainless steel sheet 2b finish,hairline finish stainless steel sheet |

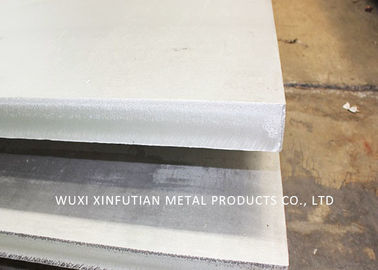

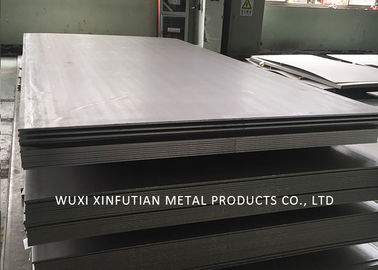

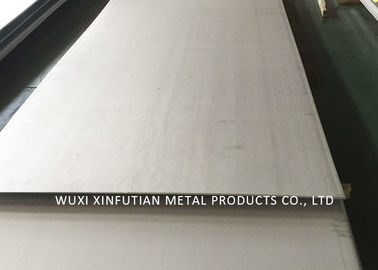

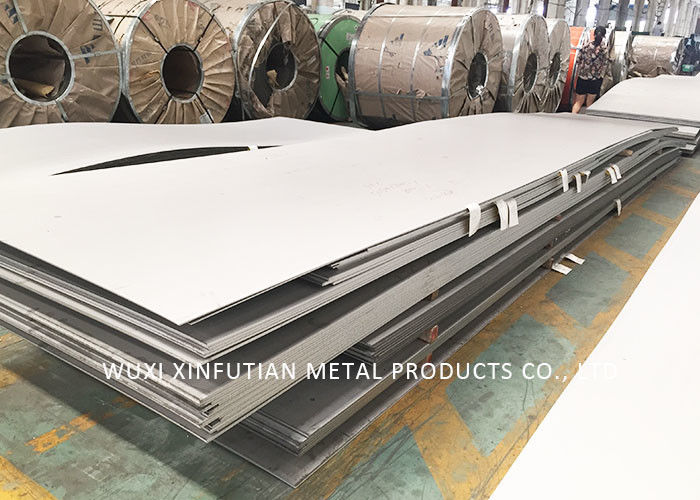

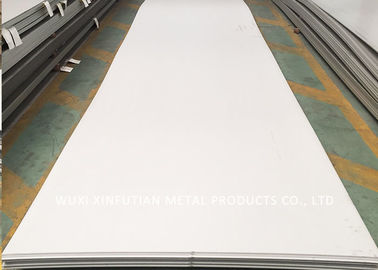

DIN 1.4301 NO1 Finish 3mm - 50mm Thickness Hot Rolled Stainless Steel Sheet
300 Series stainless steels are classified as austenitic, and are hardenable only by cold working methods. These grades of stainless have chromium (approx. 18 to 30%) and nickel (approx. 6 to 20%) as their major alloying additions. Type 304 is the most widely used alloy of all stainless steels. 300 Series Stainless steel alloys resist corrosion, maintain their strength at high temperatures and are easy to maintain.
304 standards CHINA:06Cr19Ni10 ASTM/ASME: S30400 DIN: 1.4301
1. 304 Chemical Properties:
C: ≤0.08 ,Si :≤1.0 ,Mn :≤2.0 ,Cr :18.0~20.0 ,
Ni : 8.0~10.0,S :≤0.03 ,P :≤0.045
Tensile strength σb (MPa |
≥ 520
|
Specific heat capacity(0 ~ 100 ℃, KJ kgK) |
0.50
|
Conditions yield strength |
σ0.2 (MPa) ≥ 205
|
Thermal conductivity (W m. K) |
(100 ℃), 16.3 21.5 (500 ℃)
|
Elongation δ5 (%) |
≥40
|
The linear expansion coefficient k. |
(0 ~ 100 ℃), 17.2 (0 ~ 500 ℃) of 18.4
|
Section shrinkage ψ (%) |
≥ 60
|
Resistivity (20 ℃, 10 Ω m.) |
0.73
|
Hardness |
≤ 187HB; ≤ 90HRB; ≤ 200HV
|
The longitudinal elastic modulus (20 ℃, KN/mm) | 193 |
Melting point (℃) |
1398 ~ 1454
|
Specific heat capacity | 0.50 |
2. Resistance
Stainless steel’s resistance to corrosion and staining, low maintenance and familiar lustre make it an ideal material for many applications.The alloy is used in cookware, cutlery, household hardware, surgical instruments, major appliances, industrial equipment and as an automotive and construction material in large buildings etc. It also can be use in commercial kitchens and food processing plants, as it can be steam-cleaned and sterilized and does not need paint or other surface finishes.
3. Applications:
Food preparation equipment, especially in chloride environments
Chemical processing, equipment
Laboratory benches and equipment
Rubber, plastics, pulp & paper machinery
Pollution control equipment
Boat fittings, value and pump trim
Heat exchangers
Pharmaceutical and textile industries
Condensers, evaporators and tanks
4. FAQ
Q1. Minimum Order Quantity?
A:1-2ton
Q2. What kind of terms of payment?
A:T/T, L/C are available.
Q3. What grams of the product can you offer?
A:These products can be customized according to your requirement.
Q4.Is free sample available?
A:Yes, free sample is available.
Q5. Can you do Customization & Reproduction if I provide a photo?
A:Yes, we do Customization & Reproduction service.
Q6. Does the packaging e and arrive in good conditions?
A:Yes, e Packing guarantee , all the products will arrive your door under good conditions.
Q7. How long does it usually take to deliver the product?
A:We will make the shipment to you immediately. It will take about 18 to 40 days arrive worldwide.
It depends on the specific quantity
Main Application:
Stainless steel sheets are widely used in below fields:
1: Chemical industry: Equipment, industrial tanks and etc.
2: Medical instruments: Surgical instruments, surgical implants and etc.
3: Architectural purpose: Cladding, handrails, elevator, escalators,door and window fittings, street furniture, structural sections, enforcement bar, lighting columns, lintels, masonry supports, interior exterior decoration for building, milk or food processing facilities and etc.
4: Transportation: Exhaust system, car trim/grilles, road tankers, ship containers,refuse vehicles and etc.
5: Kitchen Ware: Tableware, kitchen utensil, kitchen ware, kitchen wall, food trucks, freezers and etc.
6: Oil and Gas: Platform accommodation, cable trays, sub-sea pipelines and etc.
7: Food and Drink: Catering equipment, brewing, distilling, food processing and etc.
8: Water: Water and sewage treatment, water tubing, hot water tanks and etc.
And other related industry or construction field.
