| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | BAOSTEEL , TISCO ,HONGWANG ,LISCO |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 316L |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 T/Month |
| Thickness: | 5-100mm | Finish: | NO 1 |
|---|---|---|---|
| Width: | 1500mm,1800mm | Color: | Natural Surface Or As Customized |
| Standard: | JIS/ASTM/AISI/GB | Type: | Plate |
| High Light: | mirror finish stainless steel sheet,hairline finish stainless steel sheet |
||

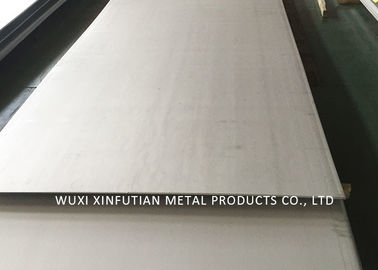

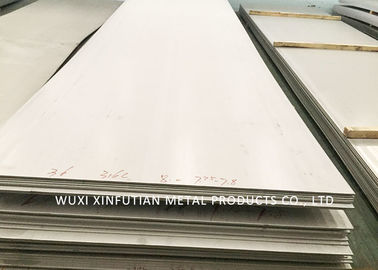

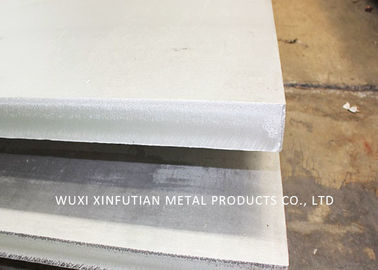

316L SS Sheet Effective Corrosion 3 - 120mm Thickness Surface NO1 Finish
CHARACTERISTICS
316 / 316L stainless steel plate provides more effective corrosion and pitting protection than 304 stainless steel due to increased levels of molybdenum and nickel in the alloy. It exhibits the same high strength, toughness, high temperature and high workability as 304 satinles alloy plate .
PRODUCTS DETAILS
| Standard: | ASTM A240,ASME SA240,AMS 5524/5507 |
| Thickness: | 3mm ~ 40 mm |
| Width Range: | 4'*8ft',4'*10ft',1000*2000mm,1500x3000mm etc |
| Brand name: | TISCO, ZPSS, BAOSTEEL, JISCO |
| Technique: | Cold Rolled ,Hot rolled |
| Forms : | Foils, Shim Sheet, Rolls, Perforated Sheet, Chequered Plate. |
| Applications | Pulp and Paper Textiles Water Treatment |
TYPICAL CHEMICAL REQUIREMENTS
| Carbon, Max % | 0.03 |
| Manganese, Max % | 2.00 |
| Phosphorus, Max % | 0.045 |
| Sulphur, Max % | 0.03 |
| Chromium, Max% | 18.0 |
| Nickel, Min% | 14.0 |
| Molybdenum, Max% | 3.0 |
| Tensile Strength ksi | 83 |
| Yield 2% Offset ksi | 38 |
| Elongation in 2” (50.80mm) | 50 |
RESISTANCE
CORRISION RESISTANCE
1) Generally more resistant than 304 in range of atmospheric environments and many corrosive media due to the increased chromium and molybdenum content.
2) Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 122°F (50°C).
3) Considered resistant to potable water with up to about 1000mg/L chlorides at ambient temperatures, reducing to about 500mg/L at 140°F (60°C).
4) Usually regarded as the “marine grade stainless steel” – but is not resistant to warm sea water.
HEAT RESISTANCE
1) Good oxidation resistance in intermittent service to 1600°F (870°C) and in continuous service to 1700°F (925°C)
2) Grade 316L is more resistant to carbide precipitation.
316 / 316L plate is used to manufacture products for applications that are exposed to salt water, acids such as sulfuric acid and chloride, petrochemicals and chemicals and high-heat such as engines and motors. Products include tanks, supports and frames, enclosures and housings, engine, motor and machinery components and parts.
OUR SERVICE
Pre-sale
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for your choices.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale choose
1. We are very glad that customer give us some suggestion for price and products.
2. If any question, please contact with us freely by E-mail or Telephone.
PACKAGE
|

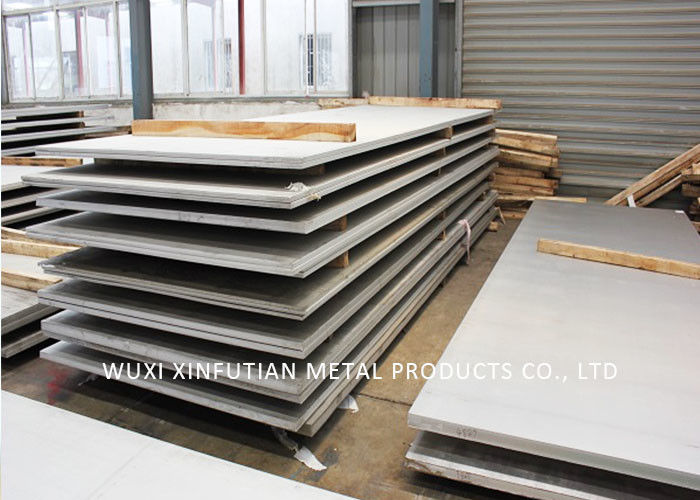

1 Sheets covered with wooden plate for protection in transportation. |
|
