BA 316 Stainless Steel Strip / SS Coil DIN 1.4401 For Building Material

Place of Origin Shanghai ,Shanxi
Brand Name BAOSTEEL , TISCO ,LISCO
Certification ISO ,SGS,BV
Model Number 300 Series 316
Minimum Order Quantity 1 ton according to products
Price Negotiation
Packaging Details Export Package
Delivery Time 5-10 working days
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 2000 ton/Month
Product Details
Thickness 0.3-25mm Finish 2B ,Hairilne,BA,NO6,N0 8
Width 5-150mm Color Natural Surface Or As Customized
Market USA ,the Middle East,South Africa Length As Customized
High Light

polished stainless steel strips

,

stainless steel strip roll

Leave a Message
Product Description

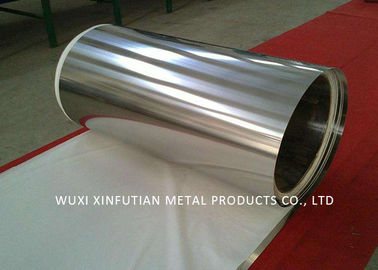

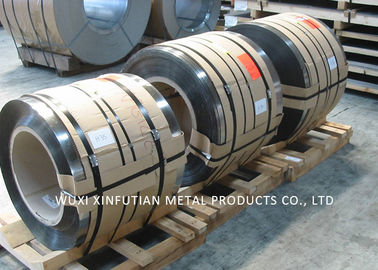

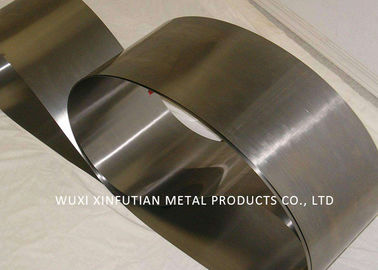

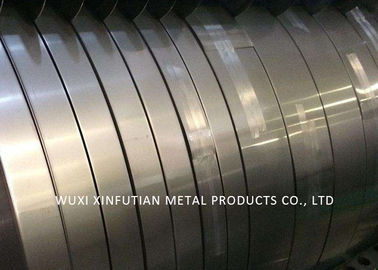

316 0.05 - 2.0mm Thickness Stainless Steel Strip DIN 1.4401 BA For Building Material



XINFUTIAN inventory includes 316/316L (UNS S31600 / S31603), in sheet, sheet coil, plate, plate coil, bar, structural and tubular products. Generally, this grade is dual-certified to meet both 316 and 316L. Alloy 316/316L is ideally suited for applications requiring corrosion resistance superior to Type 304 and has good elevated temperature strength.



1. Products Details



Commodity 300 Series 316 Stainless Steel Strip
Grade 301,302,304,304L,316,316L,310S,309S,321,301,310
Brand TISCO ,BAOSTEEL,POSCO,JISCO,LISCO
Certification SGS,BV,IQI,TUV,ISO,etc
Thickness 0.3mm-25mm
Width 1000,1219,1250,1500mm, or as your requirements
Length 2000,2438,2500,3000,6000mm, or as your requirements
Surface No.1, 2B, BA, 8K Mirror, Hairline,satin, Embossed,brush,No.4,HL,matt,pvc film,laser film.
Standard ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc
Delivery 5-7 days after confirming the order
MOQ 1 Ton

2. Chemical Properties:

  C Mn Si P S Cr Mo Ni N
316
(S31600)
0.08
max
2.0
max
0.75
max
0.045
max
0.03
max
min: 16.0
max: 18.0
min: 2.0
max: 3.0
min: 10.0
max: 14.0
0.10
max
316L
(S31603)
0.03
max
2.0
max
0.75
max
0.045
max
0.03
max
min: 16.0
max: 18.0
min: 2.0
max: 3.0
min: 10.0
max: 14.0
0.10
max

Mechanical Properties:

Grade Tensile Strength
ksi (min)
Yield Strength
0.2% ksi (min)
Elongation % Hardness (Brinell) MAX Hardness
(Rockwell B) MAX
316
(S31600)
75 30 40 217 95
316L
(S31603)
70 25 40 217 95



316 standards



CHINA:06Cr17Ni12Mo2

ASTM/ASME: UNS S31600

AFNOR: Z 6 CND 17-11
DIN: 1.4401



3. Resistance



Corrosion Resistance:



1) Generally more resistant than 304 in range of atmospheric environments and many corrosive media due to the increased chromium and molybdenum content.
2) Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 122°F (50°C).
3) Usually regarded as the “marine grade stainless steel” – but is not resistant to warm sea water.



Heat Resistance:



1) Good oxidation resistance in intermittent service to 1600°F (870°C) and in continuous service to 1700°F (925°C)
2) Grade 316L is more resistant to carbide precipitation.



4. Applications:



Food preparation equipment, especially in chloride environments,Laboratory benches and equipment
Rubber, plastics, pulp & paper machinery ,Pollution control equipment
Boat fittings, value and pump trim,Heat exchangers,Pharmaceutical and textile industries



5. Sales points and Advantages:





  • We ues the first grade material in China.”Quality is our culture”



  • Good Services, adhere to the principle of customer first .



  • Any special size can be customed ,and the price can be discussed.



  • Good package, Pallets with waterproof or as customers' demands .



  • Laser cutting, Water cutting and High accuracy are available.



  • Surface finished: 2B, BA, mirror (8K), HL .



  • Delivery fast , 5-7 working days after receiving the 30% deposit (at warehourse)



  • Your problem is our probem.
