| Place of Origin: | Shanghai ,Shanxi |
|---|---|
| Brand Name: | BAOSTEEL , TISCO ,HONGWANG ,LISCO， |
| Certification: | ISO ,SGS,BV |
| Model Number: | 300 Series 304 |
| Minimum Order Quantity: | 1 ton according to products |
| Price: | Negotiation |
| Packaging Details: | Export Package |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, D/P, Western Union |
| Supply Ability: | 2000 T/Month |
| Thickness: | 0.3-3.0MM | Finish: | Hairline |
|---|---|---|---|
| Width: | 1000,1220,1500MM | Color: | Natural Surface Or As Customized |
| Length: | 2440,2500MM | Application: | Decoration |
| High Light: | stainless steel sheet surface finish,stainless steel kick plate |
||

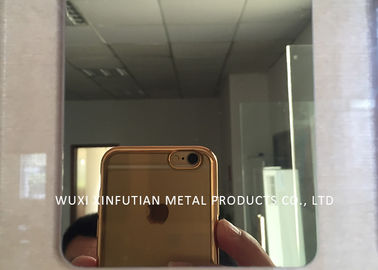

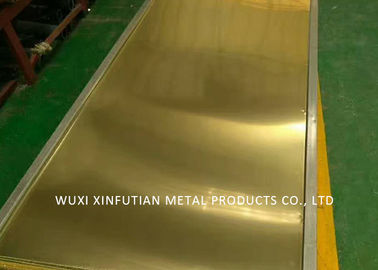

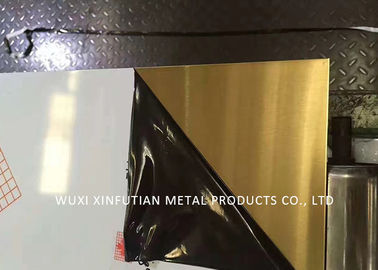

304 Yellow Ti Stainless Steel Sheet Surface Finish For Decoration
300 Series stainless steels are classified as austenitic, and are hardenable only by cold working methods. These grades of stainless have chromium (approx. 18 to 30%) and nickel (approx. 6 to 20%) as their major alloying additions. Type 304 is the most widely used alloy of all stainless steels. 300 Series Stainless steel alloys resist corrosion, maintain their strength at high temperatures and are easy to maintain.
304 standards CHINA:06Cr19Ni10 ASTM/ASME: S30400 DIN: 1.4301
1. Products Details
| Commodity | 300 Series 304 Stainless Steel Kick Sheet With Laser Cutting |
| Grade | 301,302,304,304L,316,316L,310S,309S,321,301,310 |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Certification | SGS,BV,IQI,TUV,ISO,etc |
| Thickness | 0.3-3.0mm |
| Width | 1000,1219,1250,1500mm, or as your requirements |
| Length | 2000,2438,2500,3000,6000mm, or as your requirements |
| Surface | Hairline |
| Standard | ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc |
| Delivery | 5-7 days after confirming the order |
| MOQ | 1 Ton according to products |
C:≤0.08 ,Si :≤1.0 ,Mn :≤2.0 ,Cr :18.0～20.0 ,
Ni :8.0～10.0,S :≤0.03 ,P :≤0.045
| Tensile strength σb (MPa |
≥ 520
|
Specific heat capacity(0 ~ 100 ℃, KJ kgK) |
0.50
|
| Conditions yield strength |
σ0.2 (MPa) ≥ 205
|
Thermal conductivity (W m. K) |
(100 ℃), 16.3 21.5 (500 ℃)
|
| Elongation δ5 (%) |
≥40
|
The linear expansion coefficient k. |
(0 ~ 100 ℃), 17.2 (0 ~ 500 ℃) of 18.4
|
| Section shrinkage ψ (%) |
≥ 60
|
Resistivity (20 ℃, 10 Ω m.) |
0.73
|
| Hardness |
≤ 187HB; ≤ 90HRB; ≤ 200HV
|
The longitudinal elastic modulus (20 ℃, KN/mm) | 193 |
| Melting point (℃) |
1398 ~ 1454
|
Specific heat capacity | 0.50 |
3. Resistance
Stainless steel’s resistance to corrosion and staining, low maintenance and familiar lustre make it an ideal material for many applications.The alloy is used in cookware, cutlery, household hardware, surgical instruments, major appliances, industrial equipment and as an automotive and construction material in large buildings etc. It also can be use in commercial kitchens and food processing plants, as it can be steam-cleaned and sterilized and does not need paint or other surface finishes.
4. Applications:
Pattern plate appearance beautiful, can slip, enhance performance, save steel and many other advantages. In the transportation, construction, decoration, equipment around the floor, machinery, shipbuilding and other fields are widely used. In general, the use of the side of the pattern of mechanical properties, mechanical performance is not high, so the quality of the main pattern of pattern flower pattern, pattern height, pattern height difference. Currently on the market commonly used thickness ranging from 2.0-8mm, the width of the common 1250,1500 mm two.
5. Processing
Mostly Stainless steel sheet cut from stainless steel coil ,but according to the thickness.If thickness is very thick ,it will be sheets directly.Below are some steps of sheets process.

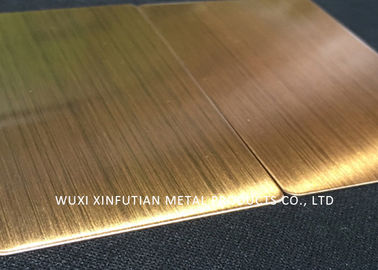

1.GRINDING
Grinding finish, also called brushed, directional or satin finish. coil or sheet...
2.POLISHING
polished stainless steel sheet uses grinding fluid to polish by polishing equipment on stainless steel ..

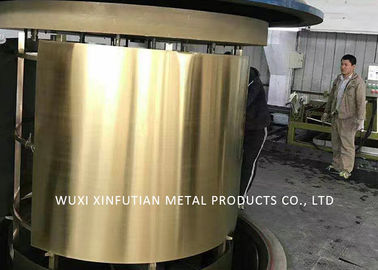

3.PVD COLOR COATING
PVD means Physical Vapor Deposition,working in vacuum condiction.....
4.ETCHING
Etching is corrode different kinds of patterns on stainless steel surfaces by chemical methods.
5.EMBOSSING
It is physical rolling on the stainless steel surface, pattern comes from metal roller....
