304 Checked Stainless Steel Surface Finish Corrosion Resistance construction Use

Basic Information
Place of Origin: Shanghai ,Shanxi
Brand Name: BAOSTEEL , TISCO ,HONGWANG ,LISCO,
Certification: ISO ,SGS,BV
Model Number: 300 Series 304
Minimum Order Quantity: 1 ton according to products
Price: Negotiation
Packaging Details: Export Package
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 2000 T/Month
Detail Information
Thickness: 0.3-3.0 Finish: Pattern
Width: 1000,1500,1800mm Color: Natural Surface Or As Customized
Length: 2500,6000mm As Customzied Applilcation: Industry
High Light:

stainless steel kick plate

,

embossed stainless steel sheets


Product Description

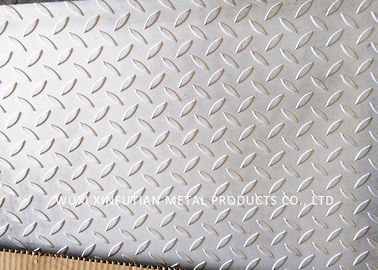

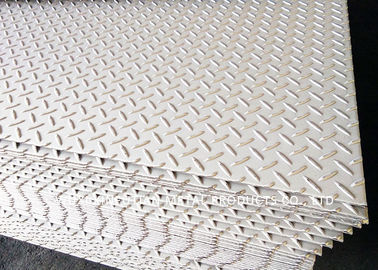

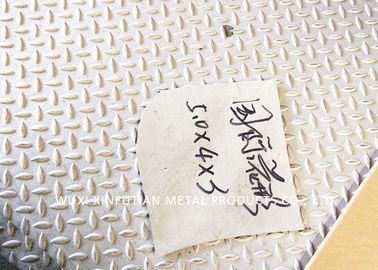

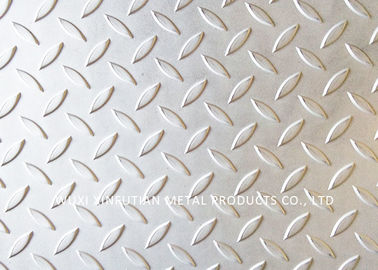

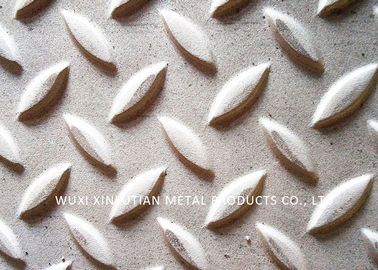

304 Checked Stainless Steel Sheet Surface Finish For Proiect





304 standards CHINA:06Cr19Ni10 ASTM/ASME: S30400 DIN: 1.4301



1. Products Details



Commodity 300 Series 304 Checked Stainless Steel Sheet
Grade 301,302,304,304L,316,316L,310S,309S,321,301,310
Brand TISCO ,BAOSTEEL,POSCO,JISCO,LISCO
Certification SGS,BV,IQI,TUV,ISO,etc
Thickness 0.3-3.0mm
Width 1000,1219,1250,1500mm, or as your requirements
Length 2000,2438,2500,3000,6000mm, or as your requirements
Surface Hairline
Standard ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc
Delivery 5-7 days after confirming the order
MOQ 1 Ton according to products

2. Chemical Properties:

C:≤0.08 ,Si :≤1.0 ,Mn :≤2.0 ,Cr :18.0~20.0 ,Ni :8.0~10.0,S :≤0.03 ,P :≤0.045

Pysical properties:

Tensile strength σb (MPa

≥ 520



Specific heat capacity(0 ~ 100 ℃, KJ kgK)

0.50



Conditions yield strength

σ0.2 (MPa) ≥ 205



Thermal conductivity (W m. K)

(100 ℃), 16.3 21.5 (500 ℃)



Elongation δ5 (%)

≥40



The linear expansion coefficient k.

(0 ~ 100 ℃), 17.2 (0 ~ 500 ℃) of 18.4



Section shrinkage ψ (%)

≥ 60



Resistivity (20 ℃, 10 Ω m.)

0.73



Hardness

≤ 187HB; ≤ 90HRB; ≤ 200HV



The longitudinal elastic modulus (20 ℃, KN/mm) 193
Melting point (℃)

1398 ~ 1454



Specific heat capacity 0.50


3. Resistance



Stainless steel’s resistance to corrosion and staining, low maintenance and familiar lustre make it an ideal material for many applications.The alloy is used in cookware, cutlery, household hardware, surgical instruments, major appliances, industrial equipment and as an automotive and construction material in large buildings etc. It also can be use in commercial kitchens and food processing plants, as it can be steam-cleaned and sterilized and does not need paint or other surface finishes.



4. Applications:



Pattern plate appearance beautiful, can slip, enhance performance, save steel and many other advantages. In the transportation, construction, decoration, equipment around the floor, machinery, shipbuilding and other fields are widely used. In general, the use of the side of the pattern of mechanical properties, mechanical performance is not high, so the quality of the main pattern of pattern flower pattern, pattern height, pattern height difference. Currently on the market commonly used thickness ranging from 2.0-8mm, the width of the common 1250,1500 mm two.



5. Package



MOQ 1 Ton
Price Term FOB CIF CNF
Payment L/C at sight or 30% TT as deposit
Delivery Time 5-10 days after receiving deposit by T/T or L/C.
Sample Samples free and express charges bear by you

Standard export package with Kraft  paper with wooded trays or as required,containers sizes as follows
