Embossed Stainless Steel Sheets / 304 Stainless Sheet Checked Surface Finish

  • Embossed Stainless Steel Sheets / 304 Stainless Sheet Checked Surface Finish
  • Embossed Stainless Steel Sheets / 304 Stainless Sheet Checked Surface Finish
Place of Origin Shanghai ,Shanxi
Brand Name BAOSTEEL , TISCO ,HONGWANG ,LISCO，
Certification ISO ,SGS,BV
Model Number 300 Series
Minimum Order Quantity 1 ton according to products
Price Negotiation
Packaging Details Export Package
Delivery Time 5-10 working days
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 2000 T/ Month
Product Details
Thickness 0.3-3.0 Finish Pattern
Width 1000,1500,1800mm Color Natural Surface Or As Customized
Length 2500,6000mm As Customzied Applilcation Industry,Decoration
High Light

stainless steel sheet surface finish

,

embossed stainless steel sheets
Leave a Message
Product Description

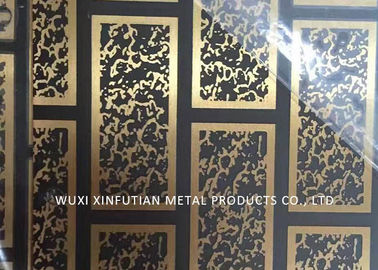

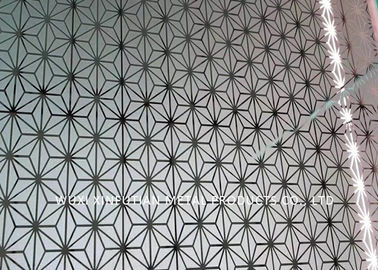

Checked Embossed Surface Finish Stainless Steel Plate for Luxury Decoration



300 Series stainless steels are classified as austenitic, and are hardenable only by cold working methods. These grades of stainless have chromium (approx. 18 to 30%) and nickel (approx. 6 to 20%) as their major alloying additions. Type 304 is the most widely used alloy of all stainless steels. 300 Series Stainless steel alloys resist corrosion, maintain their strength at high temperatures and are easy to maintain.



1. Products Details



Commodity 300 Series 304 Checked Stainless Steel Plate
Grade 301,302,304,304L,316,316L,310S,309S,321,301,310
Brand TISCO ,BAOSTEEL,POSCO,JISCO,LISCO
Certification SGS,BV,IQI,TUV,ISO,etc
Thickness 0.3-3.0mm
Width 1000,1219,1250,1500mm, or as your requirements
Length 2000,2438,2500,3000,6000mm, or as your requirements
Surface Pattern ,checked
Standard ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc
Delivery 5-7 days after confirming the order
MOQ 1 Ton according to products

2. Chemical Properties:

C:≤0.08 ,Si :≤1.0 ,Mn :≤2.0 ,Cr :18.0～20.0 ,Ni :8.0～10.0,S :≤0.03 ,P :≤0.045

Pysical properties:

Tensile strength σb (MPa

≥ 520



 Specific heat capacity(0 ~ 100 ℃, KJ kgK)

0.50


Conditions yield strength

σ0.2 (MPa) ≥ 205



 Thermal conductivity (W m. K)

(100 ℃), 16.3 21.5 (500 ℃)


Elongation δ5 (%)

≥40



 The linear expansion coefficient k.

(0 ~ 100 ℃), 17.2 (0 ~ 500 ℃) of 18.4


Section shrinkage ψ (%)

≥ 60



 Resistivity (20 ℃, 10 Ω m.)

0.73


Hardness

≤ 187HB; ≤ 90HRB; ≤ 200HV



 The longitudinal elastic modulus (20 ℃, KN/mm) 193
Melting point (℃)

1398 ~ 1454



 Specific heat capacity 0.50



3. Applications:



Pattern plate appearance beautiful, can slip, enhance performance, save steel and many other advantages. In the transportation, construction, decoration, equipment around the floor, machinery, shipbuilding and other fields are widely used. In general, the use of the side of the pattern of mechanical properties, mechanical performance is not high, so the quality of the main pattern of pattern flower pattern, pattern height, pattern height difference. Currently on the market commonly used thickness ranging from 2.0-8mm, the width of the common 1250,1500 mm two.



4. Package



MOQ 1 Ton
Price Term FOB CIF CNF
Payment L/C at sight or 30% TT as deposit
Delivery Time 5-10 days after receiving deposit by T/T or L/C.
Sample Samples free and express charges bear by you

Standard export package with Kraft  paper with wooded trays or as required,containers sizes as follows



20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM, 23MTS

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM, 27MTS

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM, 27MTS
