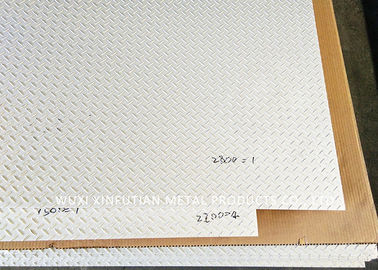

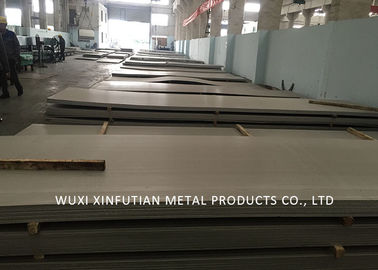

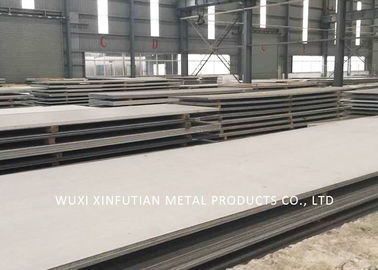

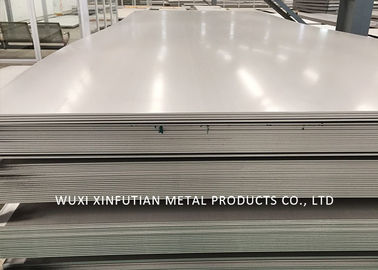

ASTM A240 304 Stainless Steel Sheet Different Finish Surface Seaworthy Package

  • ASTM A240 304 Stainless Steel Sheet Different Finish Surface Seaworthy Package
  • ASTM A240 304 Stainless Steel Sheet Different Finish Surface Seaworthy Package
  • ASTM A240 304 Stainless Steel Sheet Different Finish Surface Seaworthy Package
  • ASTM A240 304 Stainless Steel Sheet Different Finish Surface Seaworthy Package
Place of Origin Shanghai ,Shanxi
Brand Name BAOSTEEL , TISCO ,HONGWANG ,LISCO，
Certification ISO ,SGS,BV
Model Number 300 Series 304l
Minimum Order Quantity 1 ton according to products
Price Negotiation
Packaging Details Export Package
Delivery Time 5-10 working days
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 2000 T/Month
Product Details
Thickness 3-120mm Finish NO 1
Width 1000mm,1219mm,1250mm,1500mm Color Natural Surface Or As Customized
Standard JIS/ASTM/BN Shape Plate
High Light

embossed stainless steel sheets

,

304 stainless steel plate
Leave a Message
Product Description

ASTM A240 304L Hot Rolled Stainless Steel Plate 4 - 120mm Customized Thickness



1. Products Details



304L is the most versatile and widely used alloy in the stainless steel family. Ideal for a wide variety of home and commercial applications, Alloys 304L exhibits excellent corrosion resistance and has a high ease of fabrication, outstanding formability. The austenitic stainless steels are also considered to be the most weldable of the high-alloy steels and can be welded by all fusion and resistance welding processes.




Grade 304L stainless steel sheet
Thinckness 3-120mm
Tolerance +/-0.02mm
Widthness 1500mm,1800mm,2000mm or as customized
Length 6000mm or as customized
Brand name TISCO,L;ISCO,BAOSTEEL
Standard JIS, AISI, ASTM, GB, DIN, EN ,etc.
Finish 2B, NO1,Hairline, No.4, BA, 8K mirror, etc.
Certification SGS
Packaging Standard exporting packing; seaworthy package.
MOQ 1 Tons
Price time FOB, CFR, CIF, CNF
Delivery time Within 15-20 working days after receiving your deposit
Payment 30% T/T in advanced+70% balanced; irrevocable L/C at sight
Remarks Insurance is all risks and accept the third party test

2. Chemical Properties:  304L

304l C Si Mn P S Ni Cr
≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 8.00~12.00 18.00~20.00


  Pysical properties



304l Tensile Strength: σb (MPa)≥520
Yield strength : σ0.2 (MPa)≥205
Elongation: δ5 (%)≥40
Hardness : ≤187HB;≤90HRB;≤200HV
Density : 7.93g/cm3
specific heat capacity c(20℃)0.502 J·(g·C)-1
heat conductivity λ/W(m·℃)-1
melting point 1398～1420℃
304l Tensile Strength: σb (MPa)≥520
Yield strength : σ0.2 (MPa)≥205
Elongation: δ5 (%)≥40
Hardness : ≤187HB;≤90HRB;≤200HV



3. Applications


l Food processing equipment, particularly in beer brewing, milk processing, and wine making
l Kitchen benches, sinks, troughs, equipment, and appliances
l Architectural trim and molding
l Automotive and aerospace structural use
l Construction material in large buildings
l Chemical containers, including for transport
l Heat exchangers
l Nuts, bolts, screws, and other fasteners in the marine environment
l Dyeing industry
l Woven or welded screens for mining, quarrying & water filtration


3. Surface of stainless steel sheet




Finish



Thickness


 Characteristics Applications
No. 1 3.0mm~150.0mm Finished by hot-rolling, annealing and pickling, characterized by white pickled surface Chemical industry equipment,Industrial tanks
2B 0.2mm~6.0mm Finished by heat treatment, pickling after cold rolling, followed by skin pass line to be more brighter and smooth surface General Application Medical Instruments,Tableware
BA 0.5mm~30.0mm Bright heat treatment after cold rolling Kitchen utensil, kitchen ware,architectural purpose
No.4(Bright Annealed) 0.4mm~3.0mm Polishing with No. 150 to No.180 mesh abrasives The most popular finishes Milk & Food processing acilities, Hospital Equipment, Bath-tub
HL(Hair Line) 0.4mm~3.0mm Finished by continuous linear polishing Architectural purposes, escalators, kitchen ware vehicles
8k 0.5mm~30.0mm Shinning like a mirror Building construction

ASTM A240 304 Stainless Steel Sheet Different Finish Surface Seaworthy Package 0

ASTM A240 304 Stainless Steel Sheet Different Finish Surface Seaworthy Package 1
