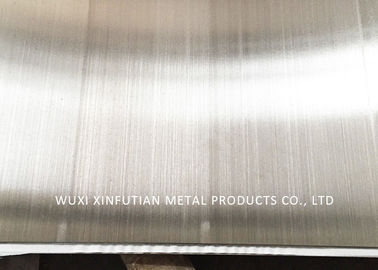

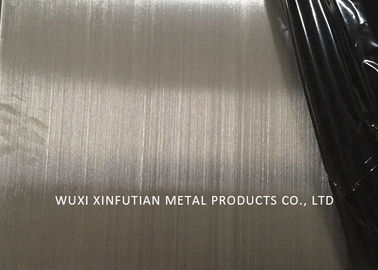

Hairline Finish 304 Stainless Steel Sheet Thickness 0.28MM Corrosion Resistance

Place of Origin Shanghai ,Shanxi
Brand Name BAOSTEEL , TISCO ,HONGWANG ,LISCO,
Certification ISO ,SGS,BV
Model Number 300 Series 304
Minimum Order Quantity 1 ton according to products
Price Negotiation
Packaging Details Export Package
Delivery Time 5-10 working days
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 2000 T/Month
Product Details
Thickness 0.3 - 3.0mm Finish Hairline,2B ,BA
Width 1000,1500,1220mm Color Natural Surface Or As Customized
Length 2440,2000,or Customized Type Sheet
High Light

304 grade stainless steel sheet

,

304 stainless steel plate

Leave a Message
Product Description

      Hairline Finish 304 Stainless Steel Sheet Thickness 0.28MM Corrosion Resistance



300 Series stainless steels are classified as austenitic, and are hardenable only by cold working methods. These grades of stainless have chromium (approx. 18 to 30%) and nickel (approx. 6 to 20%) as their major alloying additions. Type 304 is the most widely used alloy of all stainless steels. 300 Series Stainless steel alloys resist corrosion, maintain their strength at high temperatures and are easy to maintain.



304 standards CHINA:06Cr19Ni10 ASTM/ASME: S30400 DIN: 1.4301



1. Products Details



Commodity

Inox 316L 316L 304 Stainless Steel Sheet 0.28mm Thick Stainless Steel Plate



Grade

301,302,304,304L,316,316L,310S,309S,321,301,310



Brand

TISCO ,BAOSTEEL,POSCO,JISCO,LISCO



Certification

SGS,BV,IQI,TUV,ISO,etc



Thickness 0.3-3.0mm
Width

1000,1219,1250,1500mm, or as your requirements



Length

2000,2438,2500,3000,6000mm, or as your requirements



Surface

Hairline



Standard

ASTM,AISI,SUS,JIS,EN,DIN,GB, ASME,etc



Delivery

5-7 days after confirming the order



MOQ

1 Ton according to products



2. Chemical Properties:

Material C Si Ni Mn P S

Cr



304 ≤0.07 ≤1.00 8.00-10.00 ≤2.00 ≤0.035 ≤0.030

17.00-19.00



304L ≤0.030 ≤1.00 8.00-10.00 ≤2.00 ≤0.035 ≤0.030

18.00-20.00



316 ≤0.08 ≤1.00 10.00-14.00 ≤2.00 ≤0.035 ≤0.030

16.00-18.50



316L ≤0.030 ≤1.00 12.00-15.00 ≤2.00 ≤0.035 ≤0.030

16.00-18.00



Pysical properties:

Tensile strength σb (MPa): ≥ 520

Conditions yield strength : σ0.2 (MPa) ≥ 205

Elongation δ5 (%) ≥40

Section shrinkage ψ (%) ≥ 60

Hardness: ≤ 187HB; ≤ 90HRB; ≤ 200HV

Melting point (℃) : 1398 ~ 1454

Specific heat capacity (0 ~ 100 ℃, KJ kgK) : 0.50

Thermal conductivity (W m. K): (100 ℃), 16.3 21.5 (500 ℃)

The linear expansion coefficient k. (10) : (0 ~ 100 ℃), 17.2 (0 ~ 500 ℃) of 18.4

Resistivity (20 ℃, 10 Ω m.): 0.73

The longitudinal elastic modulus (20 ℃, KN/mm) : 193



4. Package



MOQ

1 Ton



Price Term

FOB CIF CNF



Payment

L/C at sight or 30% TT as deposit



Delivery Time

5-10 days after receiving deposit by T/T or L/C.



Sample

Samples free and express charges bear by you

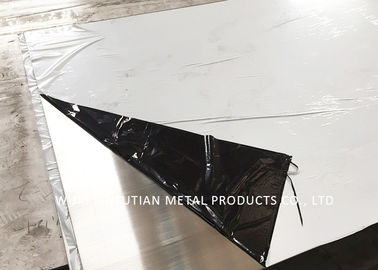

Standard export package with Kraft  paper with wooded trays or as required,containers sizes as follows





5. Applications:



Pattern plate appearance beautiful, can slip, enhance performance, save steel and many other advantages. In the transportation, construction, decoration, equipment around the floor, machinery, shipbuilding and other fields are widely used. In general, the use of the side of the pattern of mechanical properties, mechanical performance is not high, so the quality of the main pattern of pattern flower pattern, pattern height, pattern height difference. Currently on the market commonly used thickness ranging from 2.0-8mm, the width of the common 1250,1500 mm.
