Place of Origin: | zhejiang |
---|---|
Brand Name: | XINFUTIAN |
Certification: | ISO,BV |
Model Number: | 409L |
Minimum Order Quantity: | Negotiable |
Price: | Negotiation |
Packaging Details: | Standard Seaworthy package or as the customer's requirement |
Delivery Time: | 5-10 working days |
Supply Ability: | 1000 Ton Per Month |
Name: | Stainless Steel Welded Tube | Size: | DN25-DN1200 |
---|---|---|---|
Service: | OEM/ODM, OEM, 24 Hours Online | Type: | Welded, Round Pipe / Tube |
Feature: | Better Mechanical Property | Outer Diameter: | 6-630mm, Customized |
High Light: | 409l stainless steel welded tube,mill finish 409l welded tube,austenitic stainless steel welded tube |

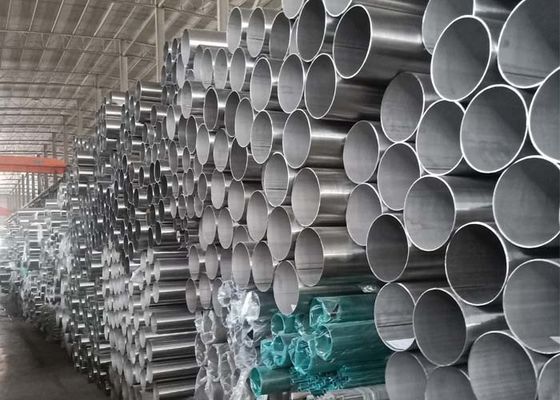

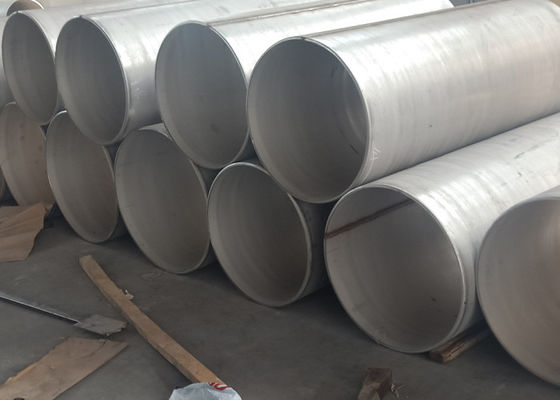

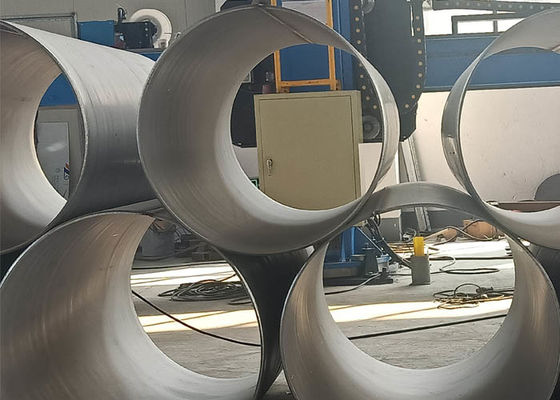

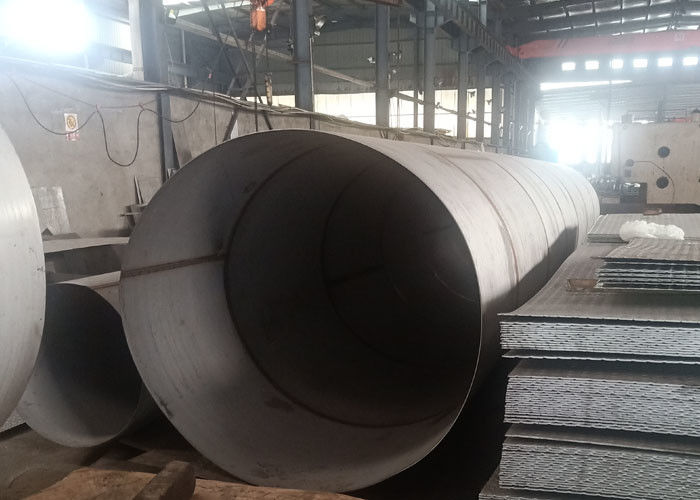

Austenitic Mill Finish Stainless Steel Welded Tube Stainless Steel Seamless Tube
Manufacture:
In order to comply with this specification welded stainless steel tube must be manufactured by an automatic welding process using no filler metal, or it must be a seamless pipe. If a welded stainless steel tube has a nominal pipe size greater than 14'' then it may be constructed from two longitudinal sections, and hence have two longitudinal welds. The pipe may be either hot finished or cold finished.
Product description
Name | Austenitic Mill Finish Stainless Steel Welded Tube Stainless Steel Seamless Tube | |||
Items | Round tubes ,welded | |||
Standard | ASTM ,GB,DIN AISI | |||
Material Grade | 316L:Ni 10%, Cr 16% | |||
304L: Ni 8%, Cr 18% | ||||
304: Ni 8%, Cr 18% | ||||
Outer Diameter | Round pipe9.5mm--813mm | |||
square | 12.7x12.7--200X200mm | |||
rectangular | 20X40--150X200mm | |||
Thickness | 0.8mm - 34mm | |||
Length | 5.8m,6m, or as customers' request | |||
Tolerance | a) Outer Diameter: +/- 0.2mm | |||
b) Thickness: +/- 0.02mm | ||||
c) Length: +/- 5mm | ||||
Surface | annealing,pickling | |||
sandblasting | ||||
Application | industry,exhausting,water | |||
Test | Squash test, extended test, water pressure test,heat treatment, NDT | |||
Chemical Composition of Material | Material | 304L | 316L | 304 |
C | ≤0.035 | ≤0.035 | ≤0.08 | |
Si | ≤1.00 | ≤1.00 | ≤1.00 | |
Mn | ≤2.00 | ≤2.00 | ≤2.00 | |
P | ≤0.045 | ≤0.045 | ≤0.045 | |
S | ≤0.03 | ≤0.03 | ≤0.03 | |
Cr | 18-20 | 16-18 | 18-20 | |
N | 8-12.0 | 10-14 | 8-10.5 | |
Mechanical Property | Material Item | 304L | 316L | 304 |
Tensile Strength | ≥515 | ≥515 | ≥515 | |
Yield Strength | ≥205 | ≥205 | ≥205 | |
Extension | ≥35% | ≥35% | ≥35% | |
Hardness (HV) | N/M | N/M | N/M |
Finish and repair:
The surface of the welded stainless steel tube must be clean and free of scale and contaminating iron particles. It can be bright annealed but may be pickled, blasted or can be passivated.
Repair by welding. Permitted on <−20% of the weld seam length of welded stainless steel tube if >−NPS 6 and having a wall thickness >−0.200 in (mm). Tungsten-arc welding process is used for repairs, with filler metal to a grade as specified in A 312 (not repeated here). Weld repairs must be identified on the pipe and in test certificate.
