Name: | Stainless Steel Tube | Steel Grade: | 300 Series |
---|---|---|---|
Type: | Welded | Tolerance: | ±1% |
Surface Finish: | 2B | Shape: | Round |
Alloy Or Not: | Non-Alloy | Application: | Structural Tube |
Package: | Standard Seaworthy Package | ||
High Light: | 0.1mm stainless steel welded tube,316 stainless steel welded tube,0.1mm large diameter steel tubing |
304 round stainless steel pipe 316 stainless steel pipe price industrial stainless steel pipe
Edelstahl rohr ist eine Art hohler langer runder Stahl, der haupt sächlich in industriellen Transport leitungen wie Erdöl, chemische Industrie, medizinische Behandlung, Lebensmittel, Leicht industrie, mechanisches Instrument usw. sowie in mechanischen Struktur komponenten verwendet wird. Wenn die Biege-und Torsion festigkeit gleich ist, ist das Gewicht leichter, so dass es auch bei der Herstellung mechanischer Teile und technischer Strukturen weit verbreitet ist. Es wird auch häufig als Möbel und Geschirr verwendet.
Product name
|
Stainless Steel Pipe
|
Grade
|
201 304 304L 316 316L 2205 2507 310S 316Ti 317L,etc.
|
Standard
|
AISI,ASTM,DIN,JIS,BS,NB
|
Length
|
1000-12000mm
|
Thickness
|
0.1-60mm
|
Surface
|
Mirror/2B/Polished or Customized
|
Package
|
clients' requirement and Standard export sea-worthy packing
|
Delivery time
|
5-15 days subject to the clients' requirement and quantity
|
Standard
|
API, ASTM, BS, DIN, GB, JIS
|
||
Outer Dia
|
21.3mm-660mm
|
||
Wall Thickness
|
0.5mm-20mm
|
||
Dia Tolerance
|
Control with in the standard, OD:+-1%, WT:+-10%
|
||
Materials
|
10#,20#,45#,Q235,Q345,Q195,Q215,Q345C,Q345A
|
||
ASTM A53A/A53B/ A178C/A106B API5L
|
|||
ST37,ST37-2,DIN 1629 ST35, ST45,DIN 17175 ST35.8,DIN 17175 19Mn5
|
|||
16Mn,Q345B,T1,T2,T5,T9,T11,T12,T22,T91,T92,P1,P2,P5,P9,P11,P12,P22,P91,P92,15CrMO,Cr5Mo,10CrMo910,
12CrMo,13CrMo44,30CrMo,A333
GR.1,GR.3,GR.6,GR.7 |
|||
Gr.B,X42,X46,X52,X60,X65,X70,X80,X100
|
|||
Inspection
|
ISO,BV,SGS,MTC
|
||
Packing
|
Standard package for export:
1). Individually in plastic bag, 2). 400-500 kg for per bundle 3). weave bundle outer packing or depend on customers’ request. |
||
Application |
Widely used in Structure, Accessorize,Construction,
Fluid transportation,machinery parts,the stress parts of the automobile tractor parts and so on |
||
MOQ
|
5metric ton,sample order accepted
|
||
Shipment time
|
Within 7-10 workdays after receiving deposit or L/C
|
No | Grade (EN) | Grade (ASTM/UNS) | C | N | Cr | Ni | Mo | Others |
1 | 1.4301 | 304 | 0.04 | - | 18.1 | 8.3 | - | - |
2 | 1.4307 | 304L | 0.02 | - | 18.2 | 10.1 | - | - |
3 | 1.4311 | 304LN | 0.02 | 0.14 | 18.5 | 8.6 | - | - |
4 | 1.4541 | 321 | 0.04 | - | 17.3 | 9.1 | - | Ti 0.24 |
5 | 1.4550 | 347 | 0.05 | - | 17.5 | 9.5 | - | Nb 0.012 |
6 | 1.4567 | S30430 | 0.01 | - | 17.7 | 9.7 | - | Cu 3 |
7 | 1.4401 | 316 | 0.04 | - | 17.2 | 10.2 | 2.1 | - |
8 | 1.4404 | 316L/S31603 | 0.02 | - | 17.2 | 10.2 | 2.1 | - |
9 | 1.4436 | 316/316LN | 0.04 | - | 17 | 10.2 | 2.6 | - |
10 | 1.4429 | S31653 | 0.02 | 0.14 | 17.3 | 12.5 | 2.6 | - |
11 | 1.4432 | 316TI/S31635 | 0.04 | - | 17 | 10.6 | 2.1 | Ti 0.30 |
12 | 1.4438 | 317L/S31703 | 0.02 | - | 18.2 | 13.5 | 3.1 | - |
13 | 1.4439 | 317LMN | 0.02 | 0.14 | 17.8 | 12.6 | 4.1 | - |
14 | 1.4435 | 316LMOD /724L | 0.02 | 0.06 | 17.3 | 13.2 | 2.6 | - |
15 | 1.4539 | 904L/N08904 | 0.01 | - | 20 | 25 | 4.3 | Cu 1.5 |
16 | 1.4547 | S31254/254SMO | 0.01 | 0.02 | 20 | 18 | 6.1 | Cu 0.8-1.0 |
17 | 1.4529 | N08926 Alloy25-6mo | 0.02 | 0.15 | 20 | 25 | 6.5 | Cu 1.0 |
18 | 1.4565 | S34565 | 0.02 | 0.45 | 24 | 17 | 4.5 | Mn3.5-6.5 Nb 0.05 |
19 | 1.4652 | S32654/654SMO | 0.01 | 0.45 | 23 | 21 | 7 | Mn3.5-6.5 Nb 0.3-0.6 |
20 | 1.4162 | S32101/LDX2101 | 0.03 | 0.22 | 21.5 | 1.5 | 0.3 | Mn4-6 Cu0.1-0.8 |
21 | 1.4362 | S32304/SAF2304 | 0.02 | 0.1 | 23 | 4.8 | 0.3 | - |
22 | 1.4462 | 2205/ S32205 /S31803 | 0.02 | 0.16 | 22.5 | 5.7 | 3 | - |
23 | 1.4410 | S32750/SAF2507 | 0.02 | 0.27 | 25 | 7 | 4 | - |
24 | 1.4501 | S32760 | 0.02 | 0.27 | 25.4 | 6.9 | 3.5 | W 0.5-1.0 Cu0.5-1.0 |
25 | 1.4948 | 304H | 0.05 | - | 18.1 | 8.3 | - | - |
26 | 1.4878 | 321H/S32169/S32109 | 0.05 | - | 17.3 | 9 | - | Ti 0.2-0.7 |
27 | 1.4818 | S30415 | 0.15 | 0.05 | 18.5 | 9.5 | - | Si 1-2 Ce 0.03-0.08 |
28 | 1.4833 | 309S S30908 | 0.06 | - | 22.8 | 12.6 | - | - |
29 | 1.4835 | 30815/253MA | 0.09 | 0.17 | 21 | 11 | - | Si1.4-2.0 Ce 0.03-0.08 |
30 | 1.4845 | 310S/S31008 | 0.05 | - | 25 | 20 | - | - |
31 | 1.4542 | 630 | 0.07 | - | 16 | 4.8 | - | Cu3.0-5.0 Nb0.15-0.45 |
Product Display

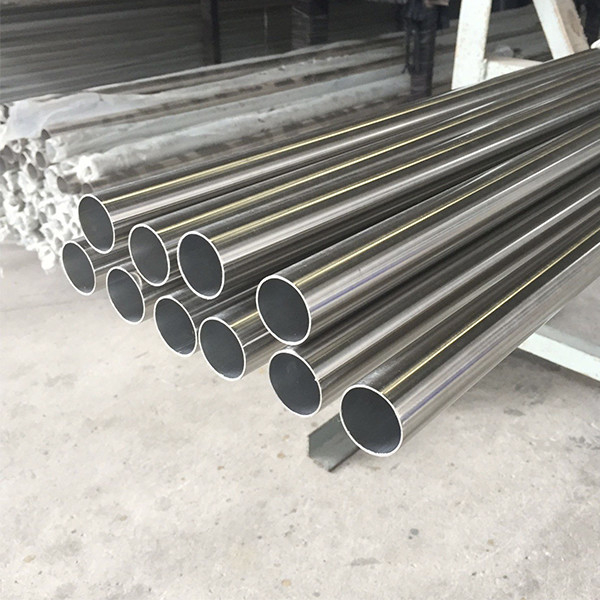

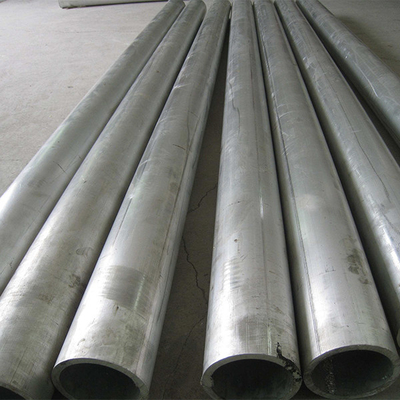

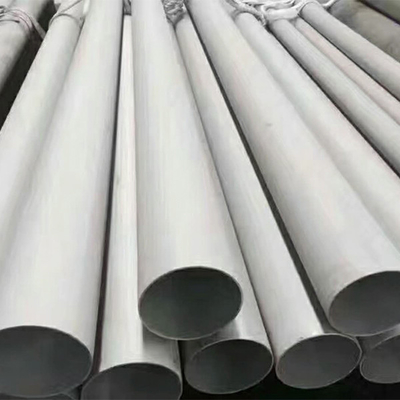

Stainless Steel Welded Tube Pictures
Standard export seaworthy packing (with waterproof paper, metal belt pack sheet, then put them in wooden pallet,
then put in container) or customized.
Products are packed and labeled according to the regulations and customer's request.
Grate car is taken to avoid any damage which might otherwise be caused during storage or transportation.
