Name: | Stainless Steel Pipe/stainless Steel Tube | Steel Grade: | 301L, 301, 310S, 410, 316Ti, 316L, 316, 410L, 430, 439, 304L, 405, 305, 429 |
---|---|---|---|
Ype: | Welded | Tolerance: | ±10% |
Alloy Or Not: | Is Alloy | Shape: | Round Pipe Tube |
Material: | 304/304L/316/316L Stainless Steel | Application: | Indoor/outdoor Gas System |
Package: | Standard Seaworthy Package | ||
High Light: | welded astm stainless steel pipe,2507 astm stainless steel pipe,tp 304 large diameter stainless pipe |
AISI ASTM TP 304 304L 309S 310S 316L 316ti 321 347H 317L 904L 2205 2507 inox stainless steel pipe/stainless steel tube
Edelstahl rohr ist eine Art hohler langer runder Stahl, der haupt sächlich in industriellen Transport leitungen wie Erdöl, chemische Industrie, medizinische Behandlung, Lebensmittel, Leicht industrie, mechanisches Instrument usw. sowie in mechanischen Struktur komponenten verwendet wird. Wenn die Biege-und Torsion festigkeit gleich ist, ist das Gewicht leichter, so dass es auch bei der Herstellung mechanischer Teile und technischer Strukturen weit verbreitet ist. Es wird auch häufig als Möbel und Geschirr verwendet.
Standard
|
API, ASTM, BS, DIN, GB, JIS
|
||
Outer Dia
|
21.3mm-660mm
|
||
Wall Thickness
|
0.5mm-20mm
|
||
Dia Tolerance
|
Control with in the standard, OD:+-1%, WT:+-10%
|
||
Materials
|
10#,20#,45#,Q235,Q345,Q195,Q215,Q345C,Q345A
|
||
ASTM A53A/A53B/ A178C/A106B API5L
|
|||
ST37,ST37-2,DIN 1629 ST35, ST45,DIN 17175 ST35.8,DIN 17175 19Mn5
|
|||
16Mn,Q345B,T1,T2,T5,T9,T11,T12,T22,T91,T92,P1,P2,P5,P9,P11,P12,P22,P91,P92,15CrMO,Cr5Mo,10CrMo910,
12CrMo,13CrMo44,30CrMo,A333
GR.1,GR.3,GR.6,GR.7 |
|||
Gr.B,X42,X46,X52,X60,X65,X70,X80,X100
|
|||
Inspection
|
ISO,BV,SGS,MTC
|
||
Packing
|
Standard package for export:
1). Individually in plastic bag, 2). 400-500 kg for per bundle 3). weave bundle outer packing or depend on customers’ request. |
||
Application |
Widely used in Structure, Accessorize,Construction,
Fluid transportation,machinery parts,the stress parts of the automobile tractor parts and so on |
||
MOQ
|
5metric ton,sample order accepted
|
||
Shipment time
|
Within 7-10 workdays after receiving deposit or L/C
|
No | Grade (EN) | Grade (ASTM/UNS) | C | N | Cr | Ni | Mo | Others |
1 | 1.4301 | 304 | 0.04 | - | 18.1 | 8.3 | - | - |
2 | 1.4307 | 304L | 0.02 | - | 18.2 | 10.1 | - | - |
3 | 1.4311 | 304LN | 0.02 | 0.14 | 18.5 | 8.6 | - | - |
4 | 1.4541 | 321 | 0.04 | - | 17.3 | 9.1 | - | Ti 0.24 |
5 | 1.4550 | 347 | 0.05 | - | 17.5 | 9.5 | - | Nb 0.012 |
6 | 1.4567 | S30430 | 0.01 | - | 17.7 | 9.7 | - | Cu 3 |
7 | 1.4401 | 316 | 0.04 | - | 17.2 | 10.2 | 2.1 | - |
8 | 1.4404 | 316L/S31603 | 0.02 | - | 17.2 | 10.2 | 2.1 | - |
9 | 1.4436 | 316/316LN | 0.04 | - | 17 | 10.2 | 2.6 | - |
10 | 1.4429 | S31653 | 0.02 | 0.14 | 17.3 | 12.5 | 2.6 | - |
11 | 1.4432 | 316TI/S31635 | 0.04 | - | 17 | 10.6 | 2.1 | Ti 0.30 |
12 | 1.4438 | 317L/S31703 | 0.02 | - | 18.2 | 13.5 | 3.1 | - |
13 | 1.4439 | 317LMN | 0.02 | 0.14 | 17.8 | 12.6 | 4.1 | - |
14 | 1.4435 | 316LMOD /724L | 0.02 | 0.06 | 17.3 | 13.2 | 2.6 | - |
15 | 1.4539 | 904L/N08904 | 0.01 | - | 20 | 25 | 4.3 | Cu 1.5 |
16 | 1.4547 | S31254/254SMO | 0.01 | 0.02 | 20 | 18 | 6.1 | Cu 0.8-1.0 |
17 | 1.4529 | N08926 Alloy25-6mo | 0.02 | 0.15 | 20 | 25 | 6.5 | Cu 1.0 |
18 | 1.4565 | S34565 | 0.02 | 0.45 | 24 | 17 | 4.5 | Mn3.5-6.5 Nb 0.05 |
19 | 1.4652 | S32654/654SMO | 0.01 | 0.45 | 23 | 21 | 7 | Mn3.5-6.5 Nb 0.3-0.6 |
20 | 1.4162 | S32101/LDX2101 | 0.03 | 0.22 | 21.5 | 1.5 | 0.3 | Mn4-6 Cu0.1-0.8 |
21 | 1.4362 | S32304/SAF2304 | 0.02 | 0.1 | 23 | 4.8 | 0.3 | - |
22 | 1.4462 | 2205/ S32205 /S31803 | 0.02 | 0.16 | 22.5 | 5.7 | 3 | - |
23 | 1.4410 | S32750/SAF2507 | 0.02 | 0.27 | 25 | 7 | 4 | - |
24 | 1.4501 | S32760 | 0.02 | 0.27 | 25.4 | 6.9 | 3.5 | W 0.5-1.0 Cu0.5-1.0 |
25 | 1.4948 | 304H | 0.05 | - | 18.1 | 8.3 | - | - |
26 | 1.4878 | 321H/S32169/S32109 | 0.05 | - | 17.3 | 9 | - | Ti 0.2-0.7 |
27 | 1.4818 | S30415 | 0.15 | 0.05 | 18.5 | 9.5 | - | Si 1-2 Ce 0.03-0.08 |
28 | 1.4833 | 309S S30908 | 0.06 | - | 22.8 | 12.6 | - | - |
29 | 1.4835 | 30815/253MA | 0.09 | 0.17 | 21 | 11 | - | Si1.4-2.0 Ce 0.03-0.08 |
30 | 1.4845 | 310S/S31008 | 0.05 | - | 25 | 20 | - | - |
31 | 1.4542 | 630 | 0.07 | - | 16 | 4.8 | - | Cu3.0-5.0 Nb0.15-0.45 |
Product Display

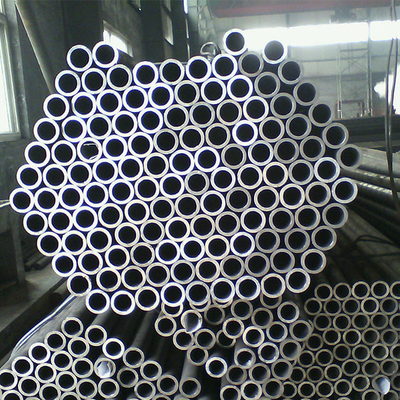

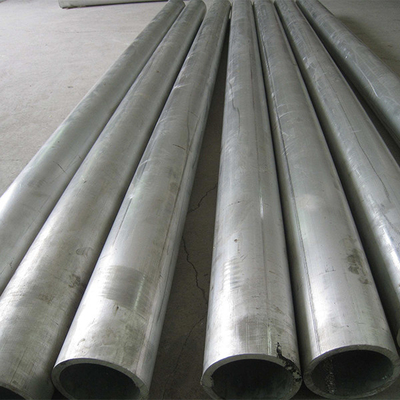

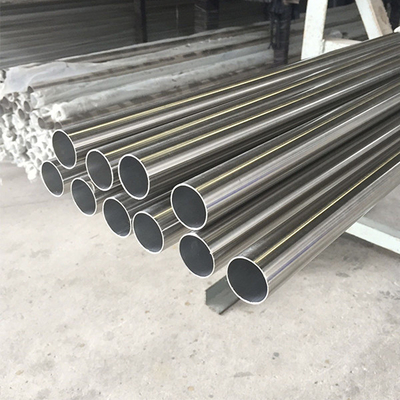

Stainless Steel Welded Tube Pictures
Standard export seaworthy packing (with waterproof paper, metal belt pack sheet, then put them in wooden pallet,
then put in container) or customized.
Products are packed and labeled according to the regulations and customer's request.
Grate car is taken to avoid any damage which might otherwise be caused during storage or transportation.
FAQ
Q:Are you trading company or manufacturer?
A:We are professional manufacturer for steel pipe,and our company also is a very professional atrade company for steel products. We can also provide a wide range of steel products.
Q:Will you delivery the goods on time?
A:Yes, we promise to provide best quality products and delivery on time. Honesty is our company's tenet.
Q:Can I get some samples?
A:Yes, we can supply free sample, but the shipping cost would be paid by our customers.
Q:How to confirm the Product Quality before placing orders?
A:You can get free samples, the quality can be inspect by third-party.
Q:How can I get your quotation as soon as possible?
A:The email and fax will be checked within 24 hours, meanwhile, the Skype, Wechat and WhatsApp will be online in 24 hours. Please send us your requirement and order information, specification ( Steel grade, size, quantity, destination port ), we will work out a best price soon.
Q:What are our main products?
A:Main products: Stainless steel plate, stainless steel coil, stainless steel pipe, stainless steel round bar and other products.
