Model Number: | 201/301/304/310/309s/316/321/430/410 Etc. | Name: | Stainless Steel Round Tube |
---|---|---|---|
Thickness: | 0.5-5mm | Technique: | Cold Rolled Hot Rolled |
Steel Grade: | 200 Series/ 300 Series /400 Series, 301, 310S, 410, 316L, 316, 321, 4 | Grade: | 200 Series/ 300 Series /400 Series |
Alloy Or Not: | Is Alloy | Length: | 3m/4m/5m/6m |
High Light: | Stainless Steel Welded Round Tube,5mm Stainless Steel Round Tube,Stainless Steel 309s Tube |
Chinese Manufacturer Seamless Welded ERW stainless steel tube 6mm thickness
Edelstahl rohr ist eine Art hohler langer runder Stahl, der haupt sächlich in industriellen Transport leitungen wie Erdöl, chemische Industrie, medizinische Behandlung, Lebensmittel, Leicht industrie, mechanisches Instrument usw. sowie in mechanischen Struktur komponenten verwendet wird. Wenn die Biege-und Torsion festigkeit gleich ist, ist das Gewicht leichter, so dass es auch bei der Herstellung mechanischer Teile und technischer Strukturen weit verbreitet ist. Es wird auch häufig als Möbel und Geschirr verwendet.
Product Name
|
Brush finish stainless steel tube
|
Brand
|
Holar Stainless Steel
|
Size
|
19mm, 20mm, 22mm, 25.4mm, 28mm, 31.8mm, 35mm, 38.1mm, 48mm, 50.8mm, 63.5mm, 73mm, 76.2mm, 89mm, 101.6mm, 114mm, 127mm, 133mm,159mm, 168mm, 219mm
|
Thickness
|
0.25mm to 4.0mm
|
Length
|
3m to 6m, or option
|
Tolerance
|
OD: +-0.20mm, WT: +-0.05mm, Length: +-5.00mm
|
Material
|
SS201, SS304, SS304L, SS316, SS316L
|
Finish
|
Hairline satin #180, #240, # 320, #400, #600 polish
|
Certificate
|
ISO 9001-2000, Product Quality Certificate
|
|
Standard package for export:
1). Individually in plastic bag, 2). 400-500 kg for per bundle 3). weave bundle outer packing or depend on customers’ request. |
Note | 201 304 304L 316 316L 2205 2507 310S 316Ti 317L usw. |
Delivery Time
|
10-15 days
|
Price term
|
EXW, FOB, CNF, CIF, CFR
|
Product Display

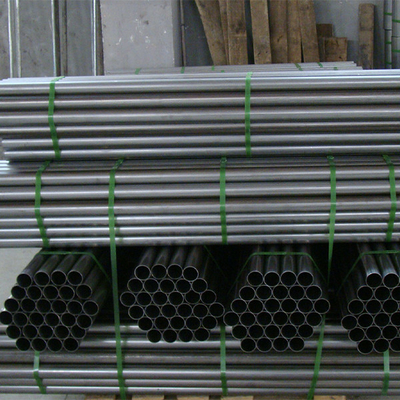

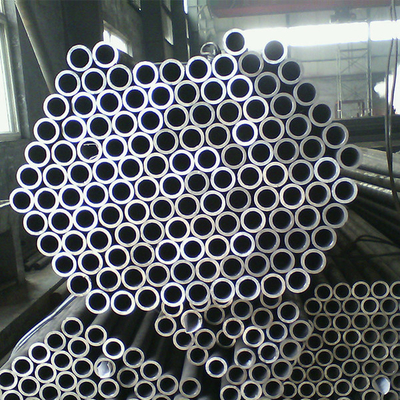

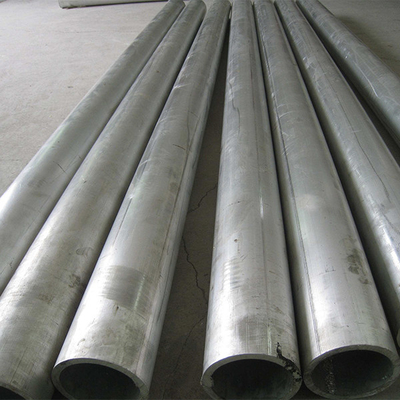

Stainless Steel Welded Tube Pictures
No | Grade (EN) | Grade (ASTM/UNS) | C | N | Cr | Ni | Mo | Others |
1 | 1.4301 | 304 | 0.04 | - | 18.1 | 8.3 | - | - |
2 | 1.4307 | 304L | 0.02 | - | 18.2 | 10.1 | - | - |
3 | 1.4311 | 304LN | 0.02 | 0.14 | 18.5 | 8.6 | - | - |
4 | 1.4541 | 321 | 0.04 | - | 17.3 | 9.1 | - | Ti 0.24 |
5 | 1.4550 | 347 | 0.05 | - | 17.5 | 9.5 | - | Nb 0.012 |
6 | 1.4567 | S30430 | 0.01 | - | 17.7 | 9.7 | - | Cu 3 |
7 | 1.4401 | 316 | 0.04 | - | 17.2 | 10.2 | 2.1 | - |
8 | 1.4404 | 316L/S31603 | 0.02 | - | 17.2 | 10.2 | 2.1 | - |
9 | 1.4436 | 316/316LN | 0.04 | - | 17 | 10.2 | 2.6 | - |
10 | 1.4429 | S31653 | 0.02 | 0.14 | 17.3 | 12.5 | 2.6 | - |
11 | 1.4432 | 316TI/S31635 | 0.04 | - | 17 | 10.6 | 2.1 | Ti 0.30 |
12 | 1.4438 | 317L/S31703 | 0.02 | - | 18.2 | 13.5 | 3.1 | - |
13 | 1.4439 | 317LMN | 0.02 | 0.14 | 17.8 | 12.6 | 4.1 | - |
14 | 1.4435 | 316LMOD /724L | 0.02 | 0.06 | 17.3 | 13.2 | 2.6 | - |
15 | 1.4539 | 904L/N08904 | 0.01 | - | 20 | 25 | 4.3 | Cu 1.5 |
16 | 1.4547 | S31254/254SMO | 0.01 | 0.02 | 20 | 18 | 6.1 | Cu 0.8-1.0 |
17 | 1.4529 | N08926 Alloy25-6mo | 0.02 | 0.15 | 20 | 25 | 6.5 | Cu 1.0 |
18 | 1.4565 | S34565 | 0.02 | 0.45 | 24 | 17 | 4.5 | Mn3.5-6.5 Nb 0.05 |
19 | 1.4652 | S32654/654SMO | 0.01 | 0.45 | 23 | 21 | 7 | Mn3.5-6.5 Nb 0.3-0.6 |
20 | 1.4162 | S32101/LDX2101 | 0.03 | 0.22 | 21.5 | 1.5 | 0.3 | Mn4-6 Cu0.1-0.8 |
21 | 1.4362 | S32304/SAF2304 | 0.02 | 0.1 | 23 | 4.8 | 0.3 | - |
22 | 1.4462 | 2205/ S32205 /S31803 | 0.02 | 0.16 | 22.5 | 5.7 | 3 | - |
23 | 1.4410 | S32750/SAF2507 | 0.02 | 0.27 | 25 | 7 | 4 | - |
24 | 1.4501 | S32760 | 0.02 | 0.27 | 25.4 | 6.9 | 3.5 | W 0.5-1.0 Cu0.5-1.0 |
25 | 1.4948 | 304H | 0.05 | - | 18.1 | 8.3 | - | - |
26 | 1.4878 | 321H/S32169/S32109 | 0.05 | - | 17.3 | 9 | - | Ti 0.2-0.7 |
27 | 1.4818 | S30415 | 0.15 | 0.05 | 18.5 | 9.5 | - | Si 1-2 Ce 0.03-0.08 |
28 | 1.4833 | 309S S30908 | 0.06 | - | 22.8 | 12.6 | - | - |
29 | 1.4835 | 30815/253MA | 0.09 | 0.17 | 21 | 11 | - | Si1.4-2.0 Ce 0.03-0.08 |
30 | 1.4845 | 310S/S31008 | 0.05 | - | 25 | 20 | - | - |
31 | 1.4542 | 630 | 0.07 | - | 16 | 4.8 | - | Cu3.0-5.0 Nb0.15-0.45 |
Standard export seaworthy packing (with waterproof paper, metal belt pack sheet, then put them in wooden pallet,
then put in container) or customized.
Products are packed and labeled according to the regulations and customer's request.
Grate car is taken to avoid any damage which might otherwise be caused during storage or transportation.
FAQ
Q:Are you trading company or manufacturer?
A:We are professional manufacturer for steel pipe,and our company also is a very professional atrade company for steel products. We can also provide a wide range of steel products.
Q:Will you delivery the goods on time?
A:Yes, we promise to provide best quality products and delivery on time. Honesty is our company's tenet.
Q:Can I get some samples?
A:Yes, we can supply free sample, but the shipping cost would be paid by our customers.
Q:How to confirm the Product Quality before placing orders?
A:You can get free samples, the quality can be inspect by third-party.
Q:How can I get your quotation as soon as possible?
A:The email and fax will be checked within 24 hours, meanwhile, the Skype, Wechat and WhatsApp will be online in 24 hours. Please send us your requirement and order information, specification ( Steel grade, size, quantity, destination port ), we will work out a best price soon.
Q:What are our main products?
A:Main products: Stainless steel plate, stainless steel coil, stainless steel pipe, stainless steel round bar and other products.
